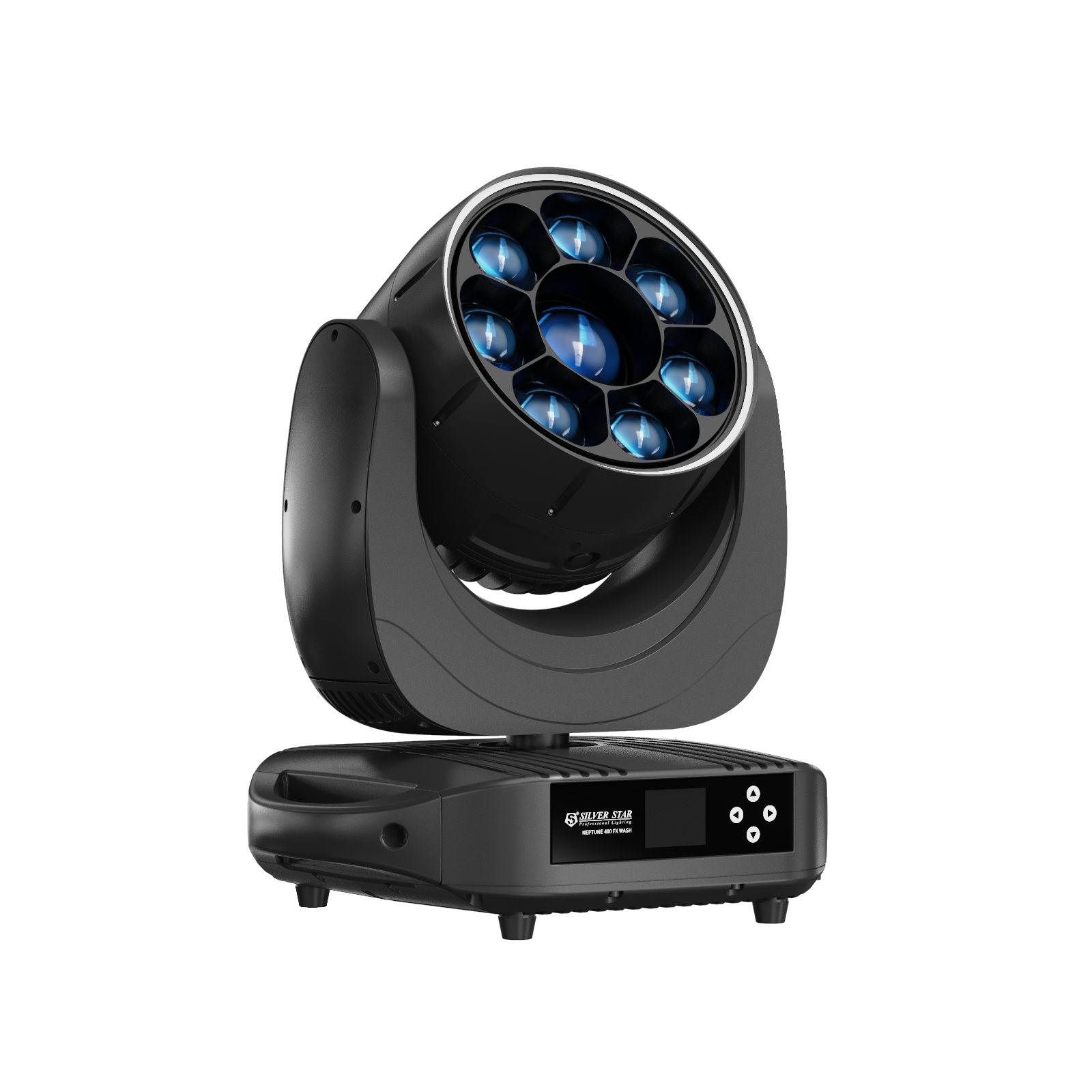

NEPTUNE 400 FX WASH is an innovative IP washing moving head, combined with 7x40W and 60W RGBW LED, one LED ring effect and great optics design. It is built in HSIC system, mixing color much easier and faster, creating a brilliant color effect. Extremely perfect dynamic effect by individ-ual pixel control. Beam angle 5°-35°, Field angle 8°-45°. Small compact with a very light weight 23KG. It is an ideal products for outdoor concerts/events, commercial complex, theme park, amusement park and rental touring market.
DETAILS
Optical system
Light source
7X40W(RGBW,RGBA optional) + 60W(RGBW)
Beam angle
5°-35°
Field angle
8°-45°
Control System
Pan/Tilt rotation
540°/220°
Dimmer
0-100% 16Bit
Cooling
Forced Convection
Control
DMX512、RDM、ARTNET、SACN、Web Server、 W-DMX (optional)
Display
On board Control, Custom Mode,0-25Hz Strobe
Con Personality
SSP(25CHS)、TOUR(30CHS)、TR16(33CHS)、CMY(31CHS) HSIC(27CHS)、PIXEL(52CHS)
Special
Pan/Tilt movement blackout, User-selectable pan/tilt ranges, gravitation sensor for auto screen positioning
Effect synthetic system
Led ring
Can present the rainbow effect
Unique Effec
Magic kaleidoscope
Appearance

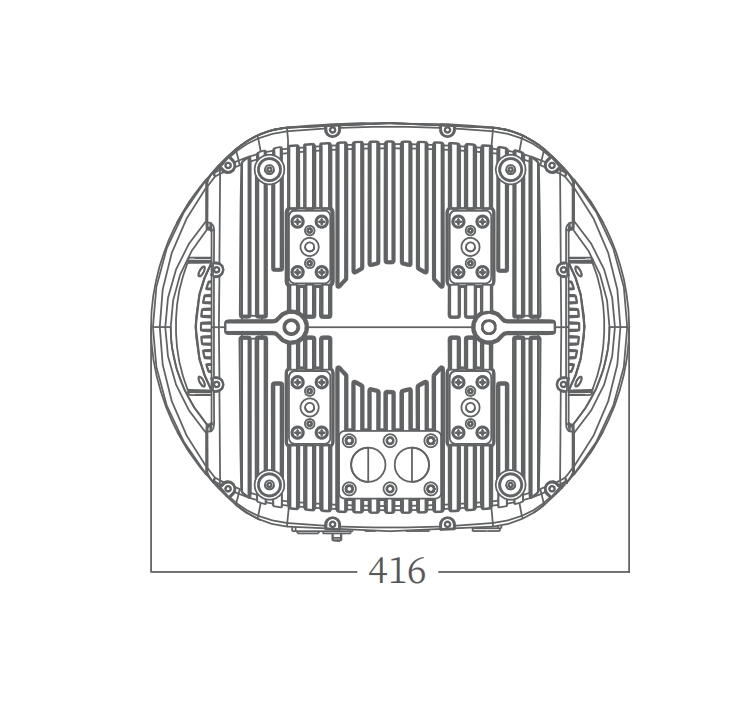

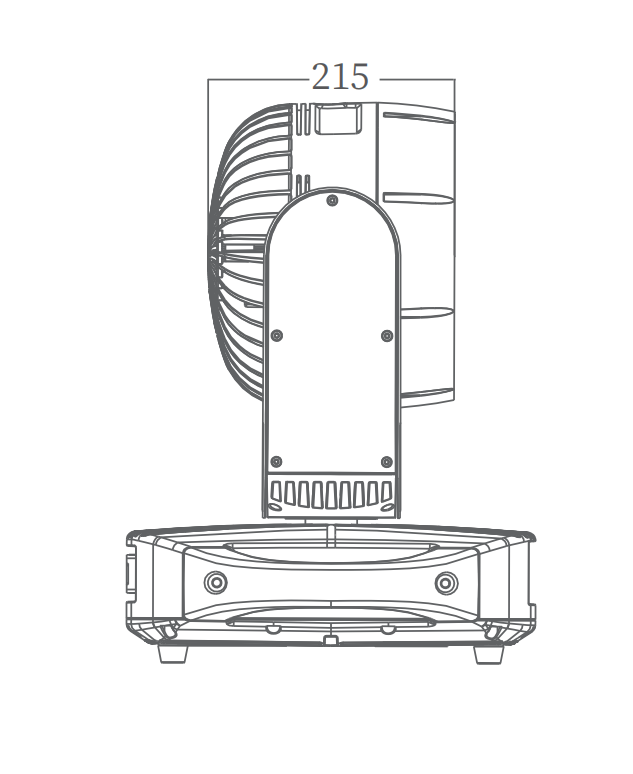

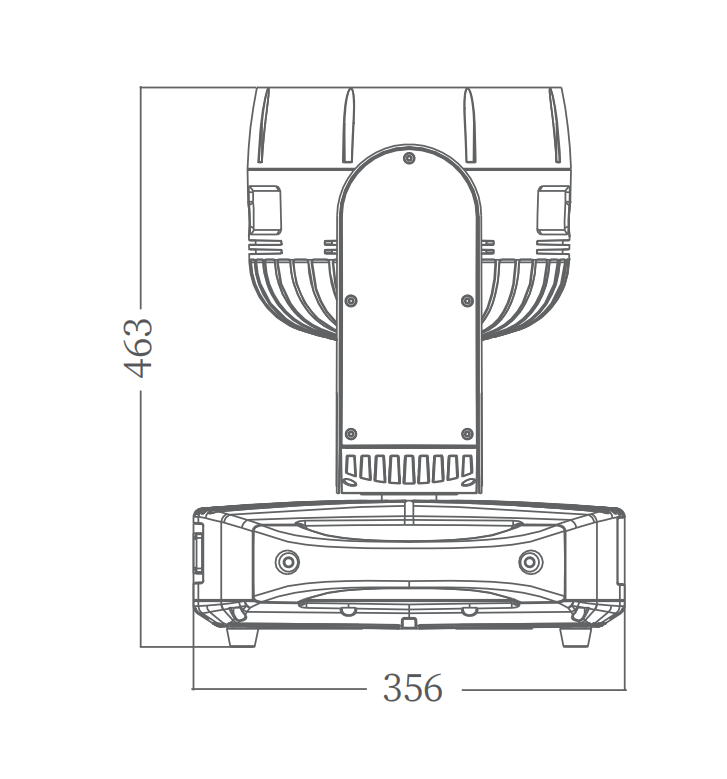

Size
416x356x489mm
Weight
23kg
Casing
Die-cast aluminumplastic（V0）
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max. Power
350W
Power Connection
Power in
Signal socker
3pin or 5 pin in and out, RJ45 in and out
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
Certification
Certification
CE、MET
