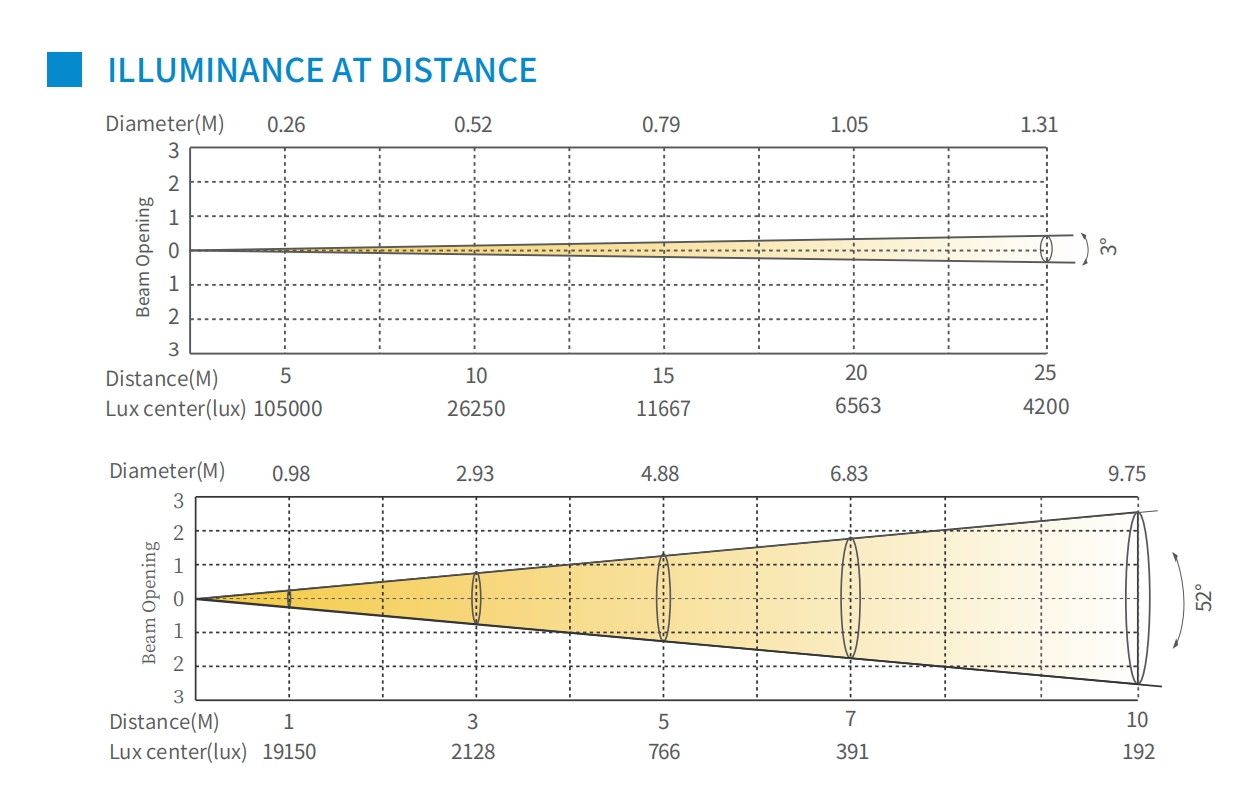

ILLUMINANCE
NH1-X
NEPTUNE NH1-X is a excellent IP66 Hybrid, it adoped high efficiency optical system, 17times optical zoom range (3° to 52°).It has accurate X/Y position, professional CMY color mixing system ,multi-gobo wheels creat colorful and vivid effects, and bring a visual feast to the audience!Both for indoor and outdoor applications, it is the ideal lighting equipment for theater, concerts, theme parks, amusement venues, etc.
DETAILS
Optical system
Light source
350W LED
Angle
3°-52°
Control System
Pan/Tilt rotation
Infinite Pan/270°(8-16bit)
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Display
On Board Control, Custom Mode. 0-25Hz Strobe
Control
DMX/RDM//NFC/Bluetooth/W-DMX（optional）
Con Personality
STANDARD/BASIC/EXTEND
Effect synthetic system
Static Gobo
12 gobos
Rotating Gobo
7 Gobos+ White, Gobo-flow effect, Gobo shake, Bi-directional rotati
Colors
8 color+white
CMY
CMY
prism
One8 prism, bidirectional rotating, speed can be adjusted 1 pc linear prism
Frost
Light atomization + rainbow disc
Appearance
Size
359*219*597mm
Weight
22KG
casting
Magnalium and Die-cast
Color
Black
Electrical Specs
Voltage
AC100-240,50/60Hz
Max.Power
550W
Power Connection
Seetronic power input and output
Signal socker
3pin or 5pin in and out, RJ45 in and out
Certification
CE
Work Environment
Ambient Temp
-20°C-45°C
IP Rated
IP66
