N8
N8 is a 650W light source LED Moving head , with beam,
Framing, Spot, dyeing and other functions. On the basis of
the original N7, the newly upgraded optical Angle is 6°-50°
minimum Angle 5 meters illumination up to 11,3000lux. The
Y-axis speed is increased to 2 seconds per Round, the NFC
function is added, the menu is quickly set, the linear CMYK
color mixing system provides rich color saturation, the
adjustable linear CTO color temperature, and the professional cutting system can cut out any polygon. Dynamic
effects tray can be dyed with water and fire effects. Designed
to provide the best choice for venues such as theater, TV
stations, concerts and rental shows.
DETAILS
Optical system
Light source
650W
Angle
6°-50
Control System
Pan/Tilt rotation
540°/270°（8-16bit）
Dimmer
0-100% 16Bit
Control
DMX/RDM/ARTNET/SACN/W-DMX(selectable)/NFC/WIFI/Bluetooth
Display
On Board Control, 0-25Hz Strobe
Con Personality
BASIC(35CHS)、STANDARD9(41CHS)、EXTEND(44CHS)
Effect synthetic system
Rotating Gobo
7 rotating Gobo wheel + white, Gobo-flow effect, Gobo shake effect, Bi-directional rotation
Static Gobo
10+1Gobos
Colors
1 color wheel(6 colors+white, rainbow-flow effect)
Animation wheel
One pice of 4 F prism with bi-directional rotation, Speed adjustable
prism
1 pentaprism, positive and negative rotation, adjustable speed
Focus
Motorized linear focus
CMYK
CMY, CTO
Framing system
4 shutter blade, Each blade's angel and direction can be individual controlled, fully blackout; The whole Framing module is ±45°
Iris
5-100% linear aperture adjustment with macro function
Zoom
Motorized linear Zoom
Frost
（light+medium）2Frost filter
Appearance

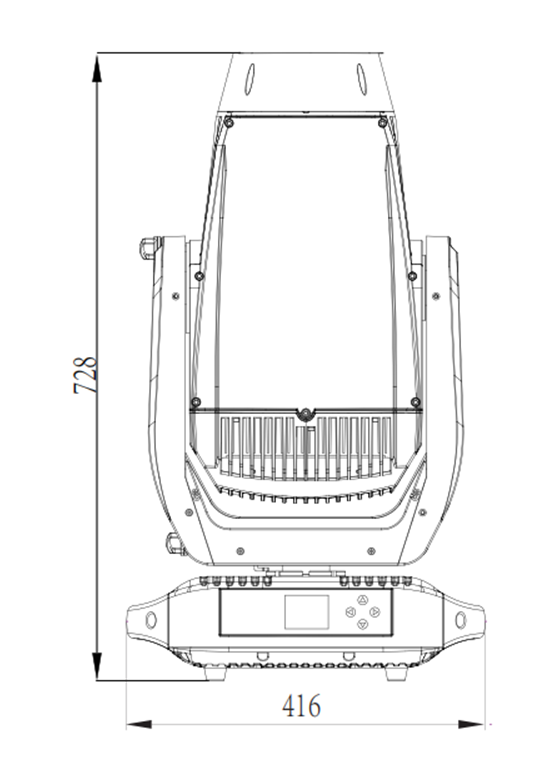

Size
416x364x728mm
Weight
38kg
Casing
Flame-retardant plastic (VO) ,Die-cast magnesium alloy
Color
black
Electrical Specs
Voltage
AC100-240V
Max Power
800W
Power Connection
Power in and out
Signal socker
Three or five core input/output RJ45 input/output
Certification
CE
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
