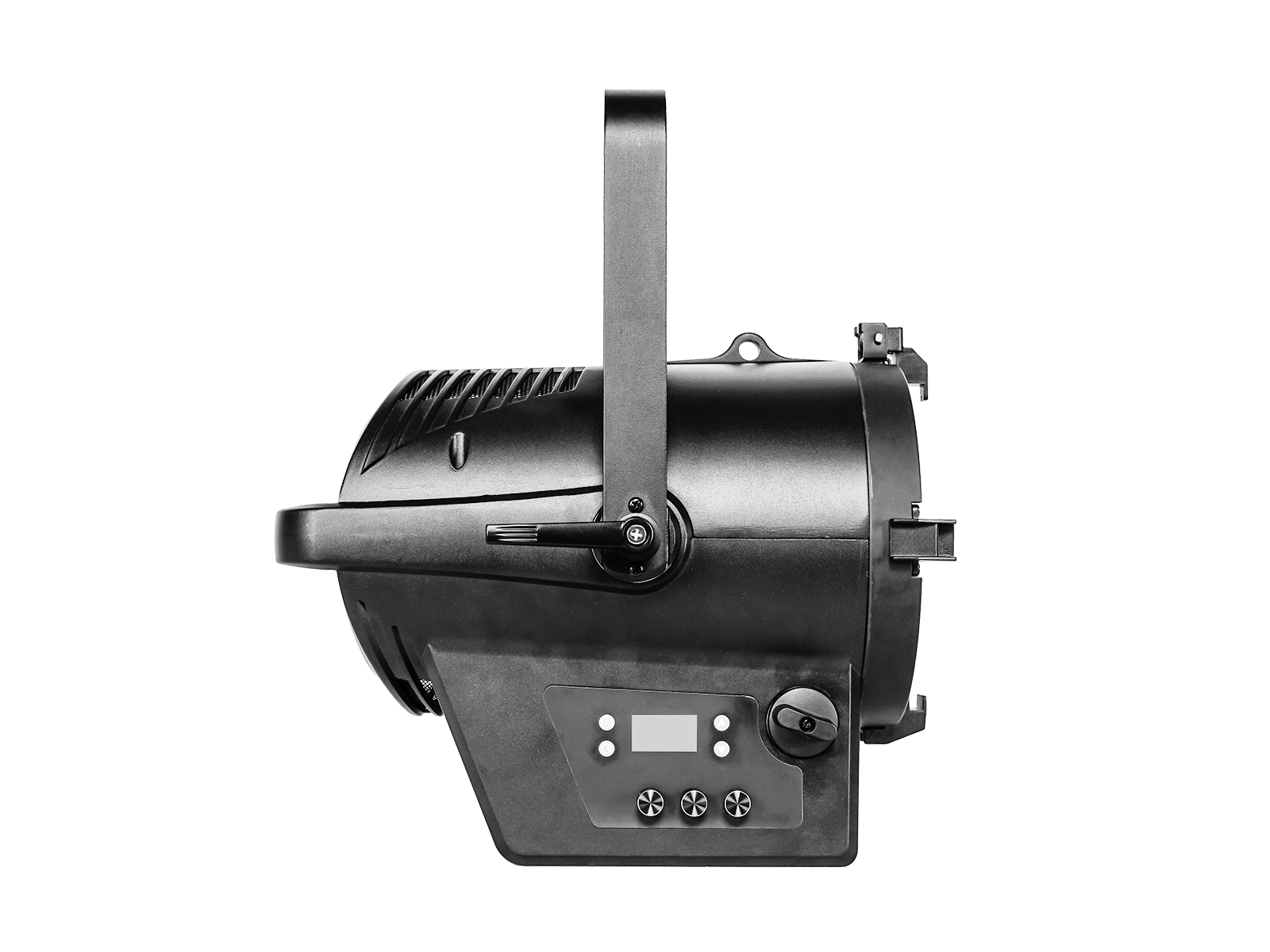

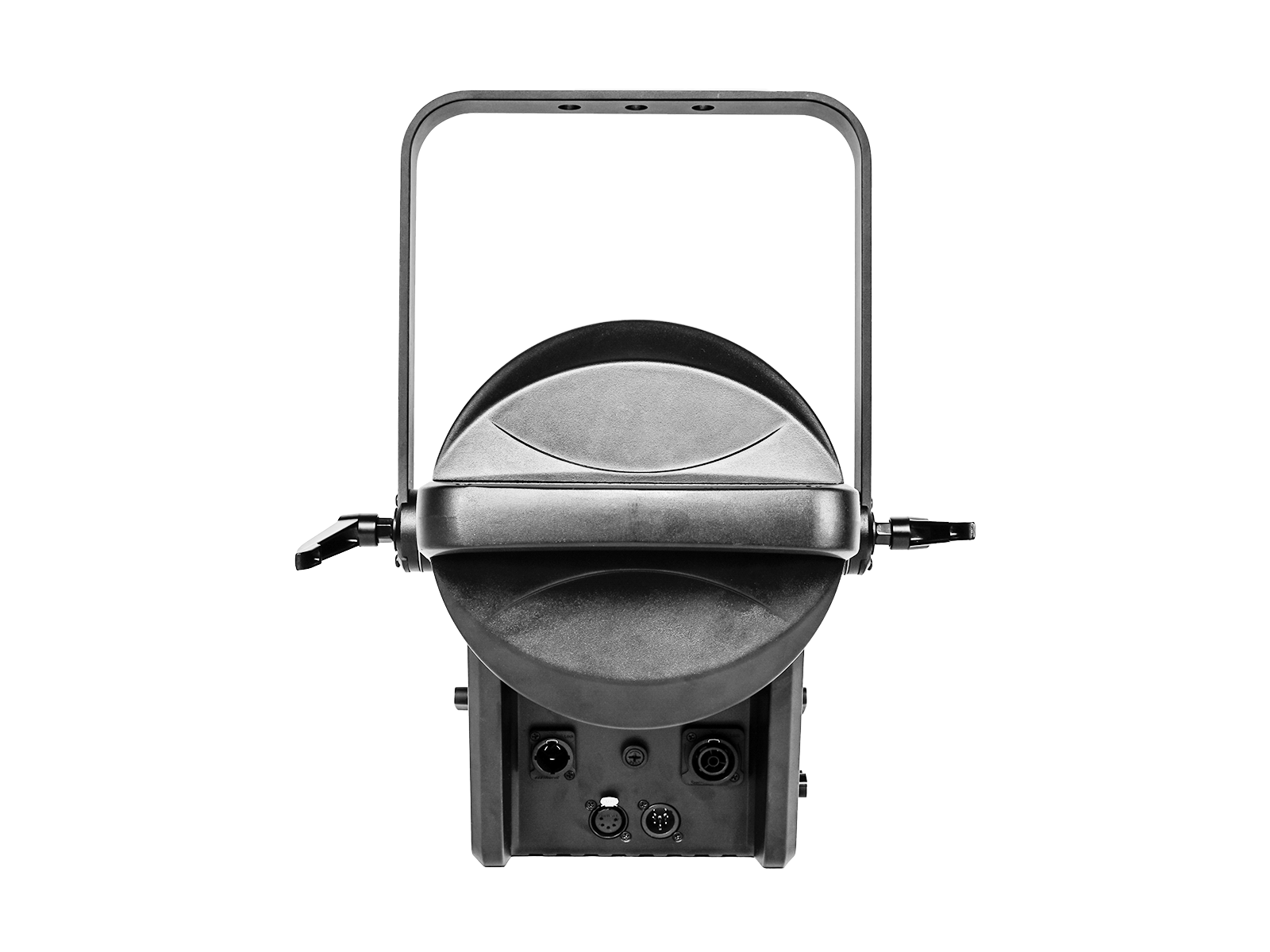

FC9
FC9 is a full-color Fresnel, with extremely uniform color mixing and high CRI. It is implanted with a high-precision Yajiang patented CCS intelligent color management system to correct color consistency, color temperature drift and other problems. Manual knobs dimming 0-100% and CCT, Beam angle 10°-60°（Manual control）, Field
angle 18°- 88°, rapid and convenient adjustment. The best choice for theaters, TV stations, cultural centers, studios, multi-functional conference rooms and other small and medium-sized places.
DETAILS
Optical system
Light source
R*20pcs,G*20pcs，B*10pcs，A*20pcs,L*20pcs，C*10pcs

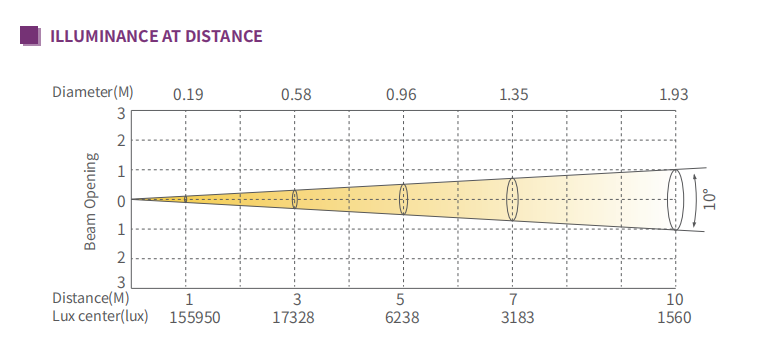

illuminance
6238lx@5m10°
CCT
1800K-10000K
Beam angle
10°-55°
Field angle
18°-88°
Ra
98
Appearance

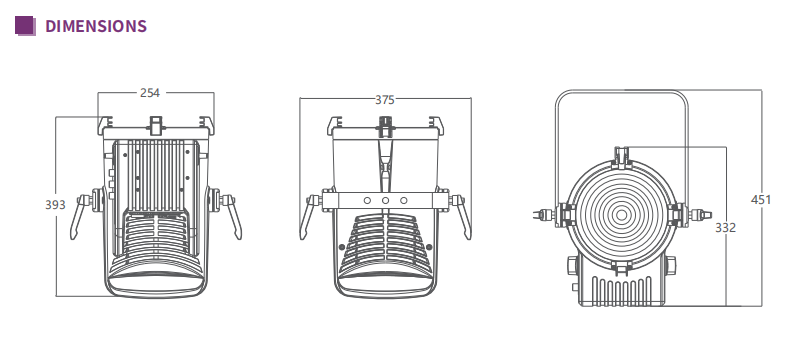

Size
375x254x393mm
Weight
8.8kg
Casing
Die-cast aluminum
Color
Black
Electrical Specs
Voltage
AC100-240V，50/60Hz
Max. Power
350W
Power Connection
Power in and out
DMX XLR
3pin or 5pin in and out
Control System
Dimmer
0-100% 16Bit
Cooling
Forced convection
Control
DMX512、RDM
Display
On board Control，Custom Mode，0-25Hz Strobe，Dimming konb
Con Personality
HSIC/SSP/TOUR/TR16/CMY
Certification
CE、MET
Work Environment
Ambient Temp
0℃-45℃
IP Rated
IP20
