EC6

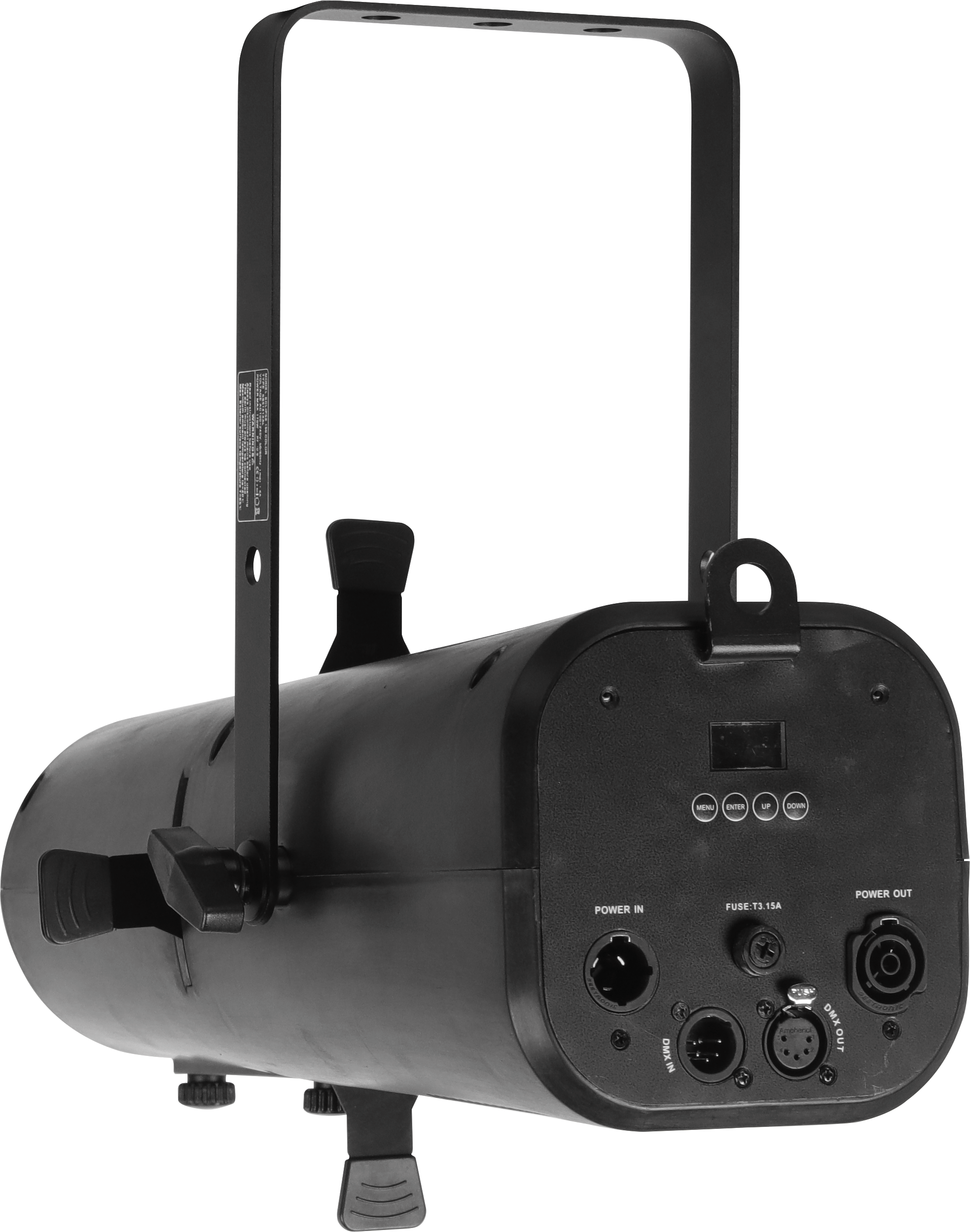

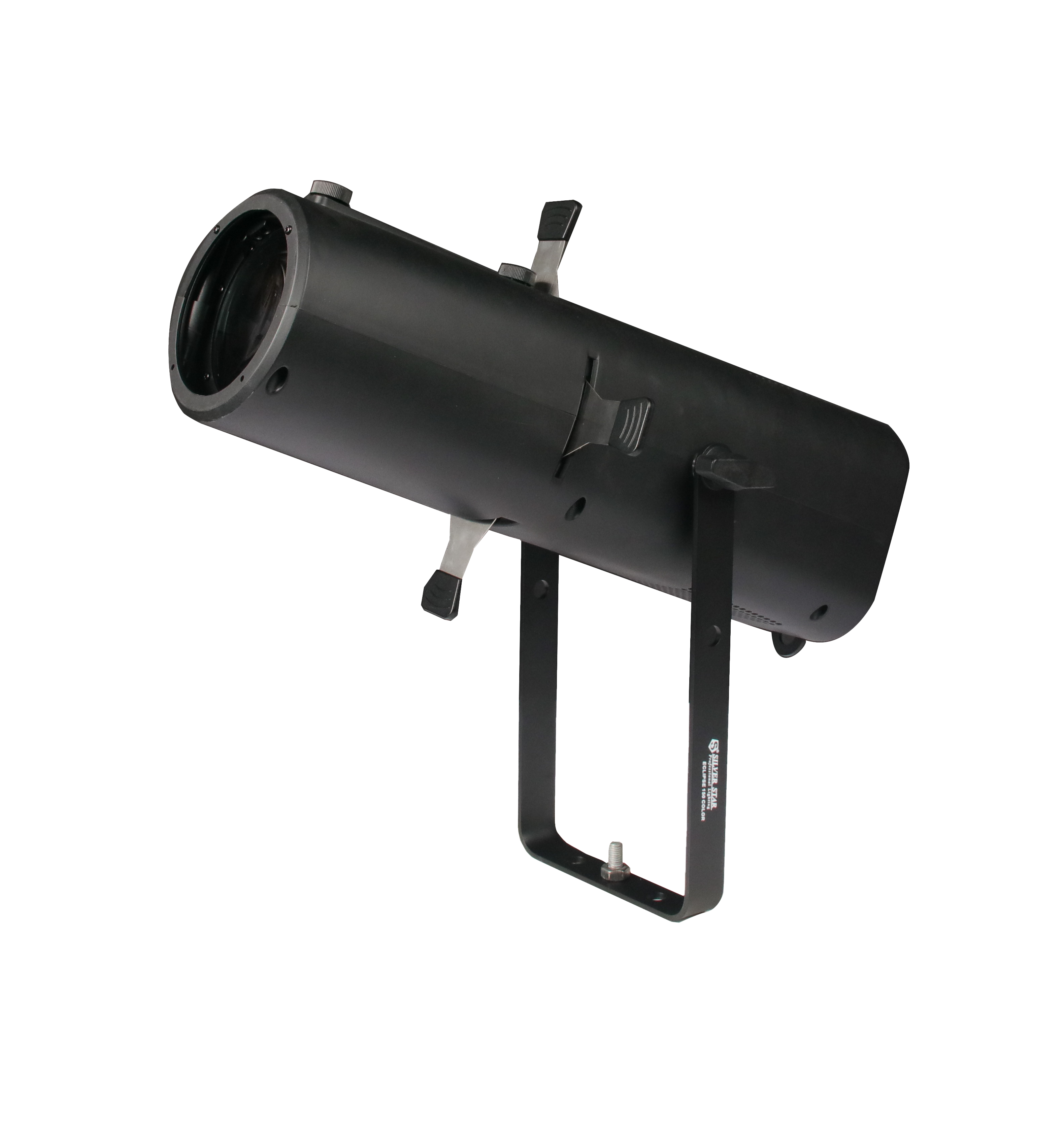

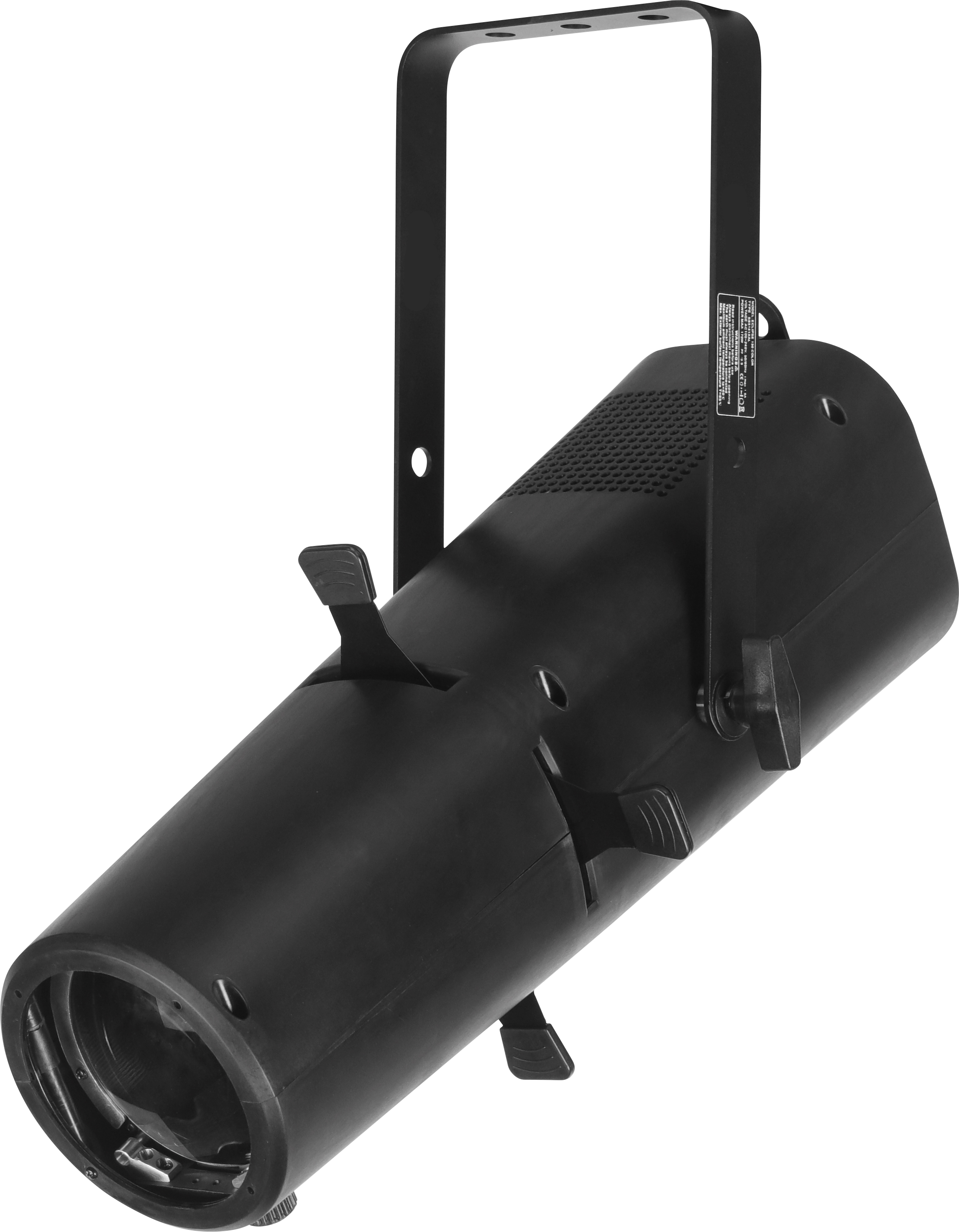

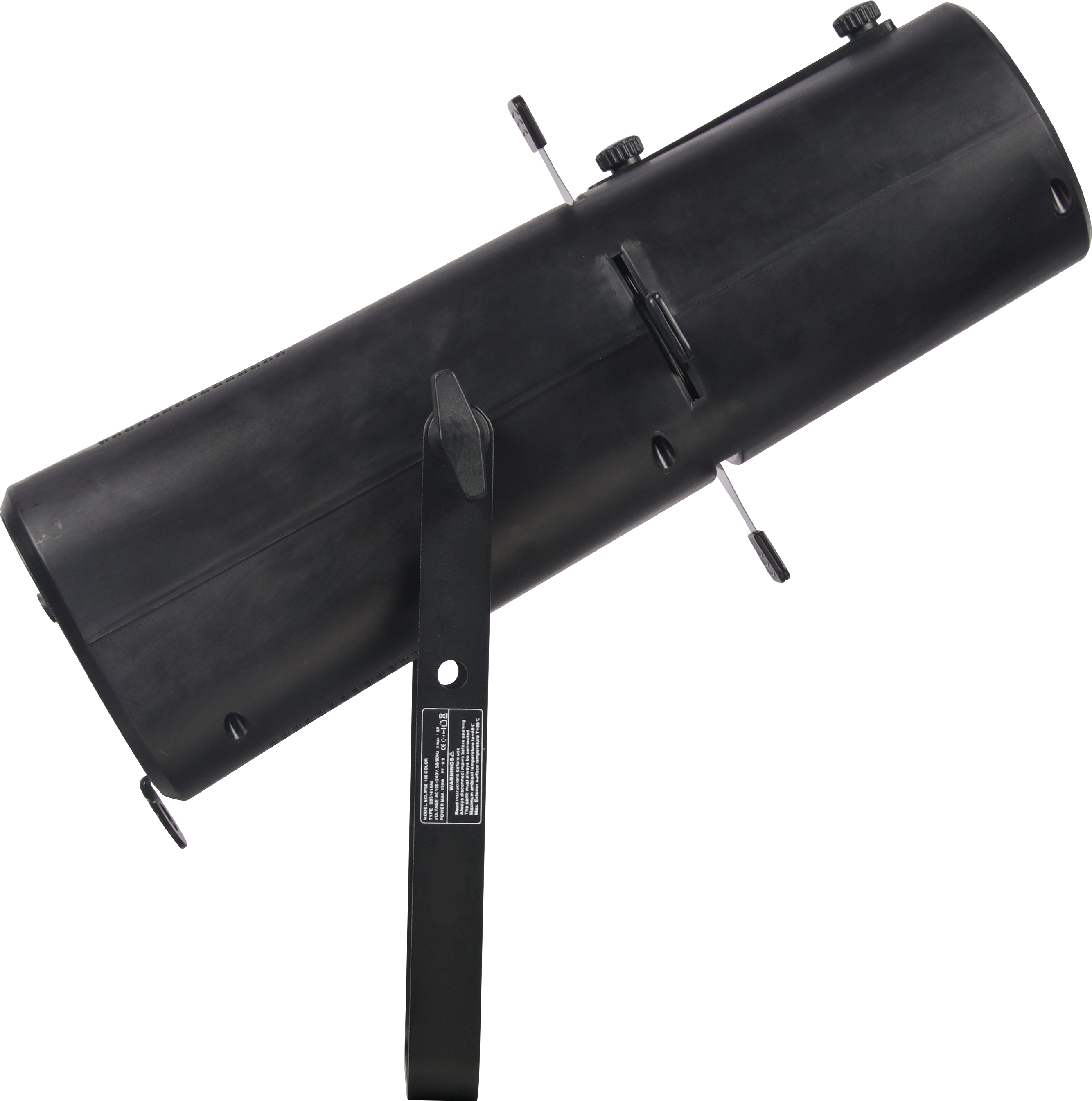

EC6 is a compact and lightweight 6 colors profile,
with uniform color mixing, clear projection.
Equipped with intelligent color manage ment
system CCS,to ensure the color consistency.
Built-in 1800-10000K high CRl CcT and 48 common
used colors. Its integrated structural design,
holding the sharp shutter framing system, and
manual zoom 25-50°. lt is perfect for theaters,
multi-functional hall, church, conference room,
and TV stations applications etc.
DETAILS
Optical system
Light source
200W RGBALC
Luminous flux
7768lm
CCT
1800K-10000K
CRI Ra
97

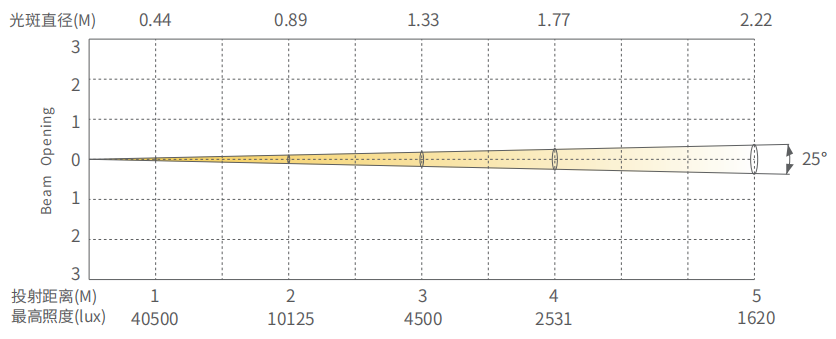

Angle
Manual Zoom 25-50°
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX/RDM
Display
On board Control, 0-25Hz Strobe
Con Personality
BASIC（3CHS）、SSP(7CHS)、TOUR(12CHS)、TR16(18CHS)、HSIC(7CHS)、CMY(10CHS)
Framing system
4 blades, manual shutter
Appearance

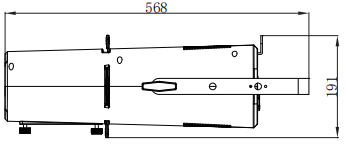

Size
568x224x191mm
Weight
6.1kg
Casing
Flame-retardant plastic（V0）
Color
Black
Electrical Specs
Voltage
AC100-240V,50/60Hz
Rated Power
200W
Power Connection
power in and out
DMX XLR
3pin or 5pin in and out
Certification
CE、MET
Work Environment
Ambient Temp
0-45℃
IP Rated
IP20
