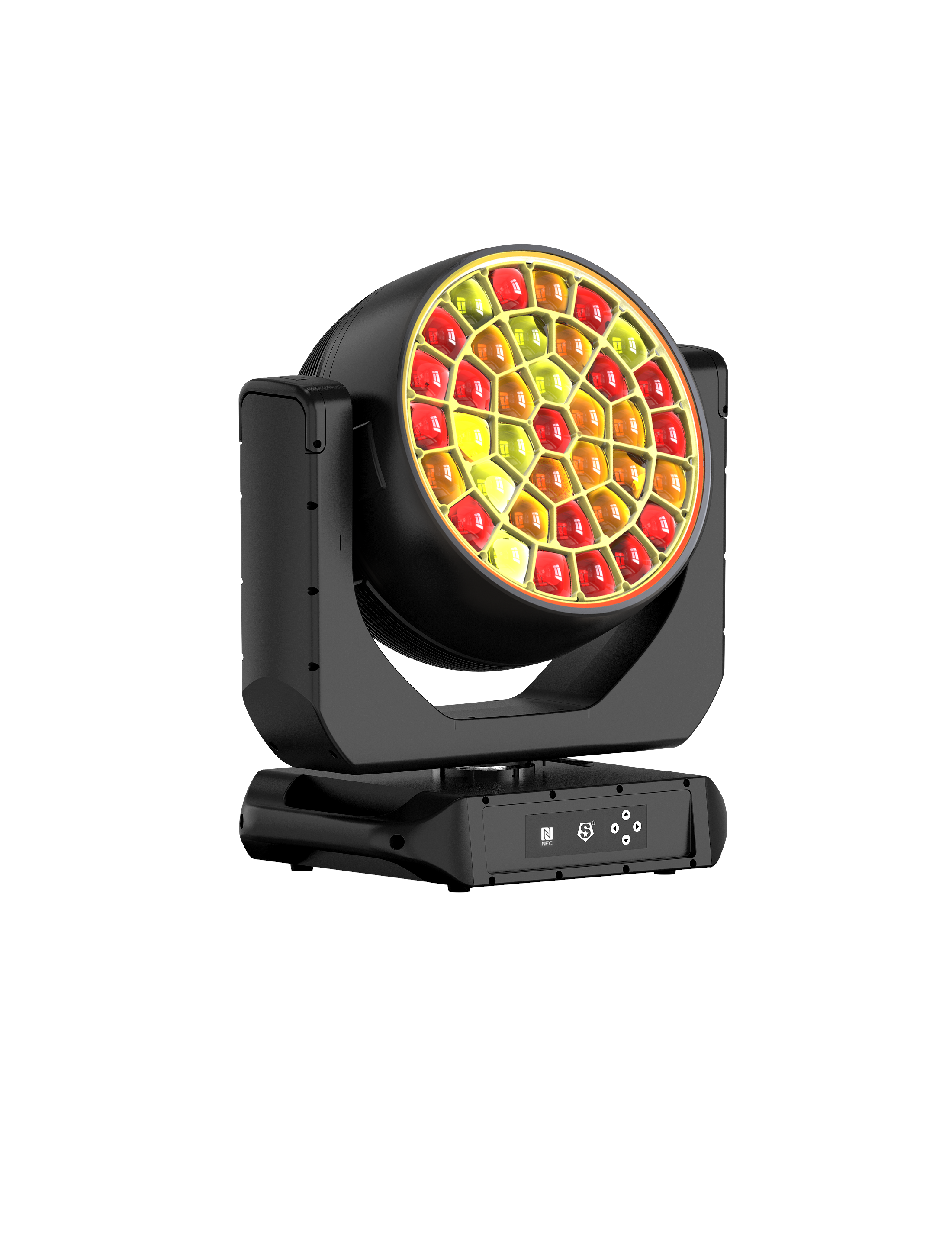

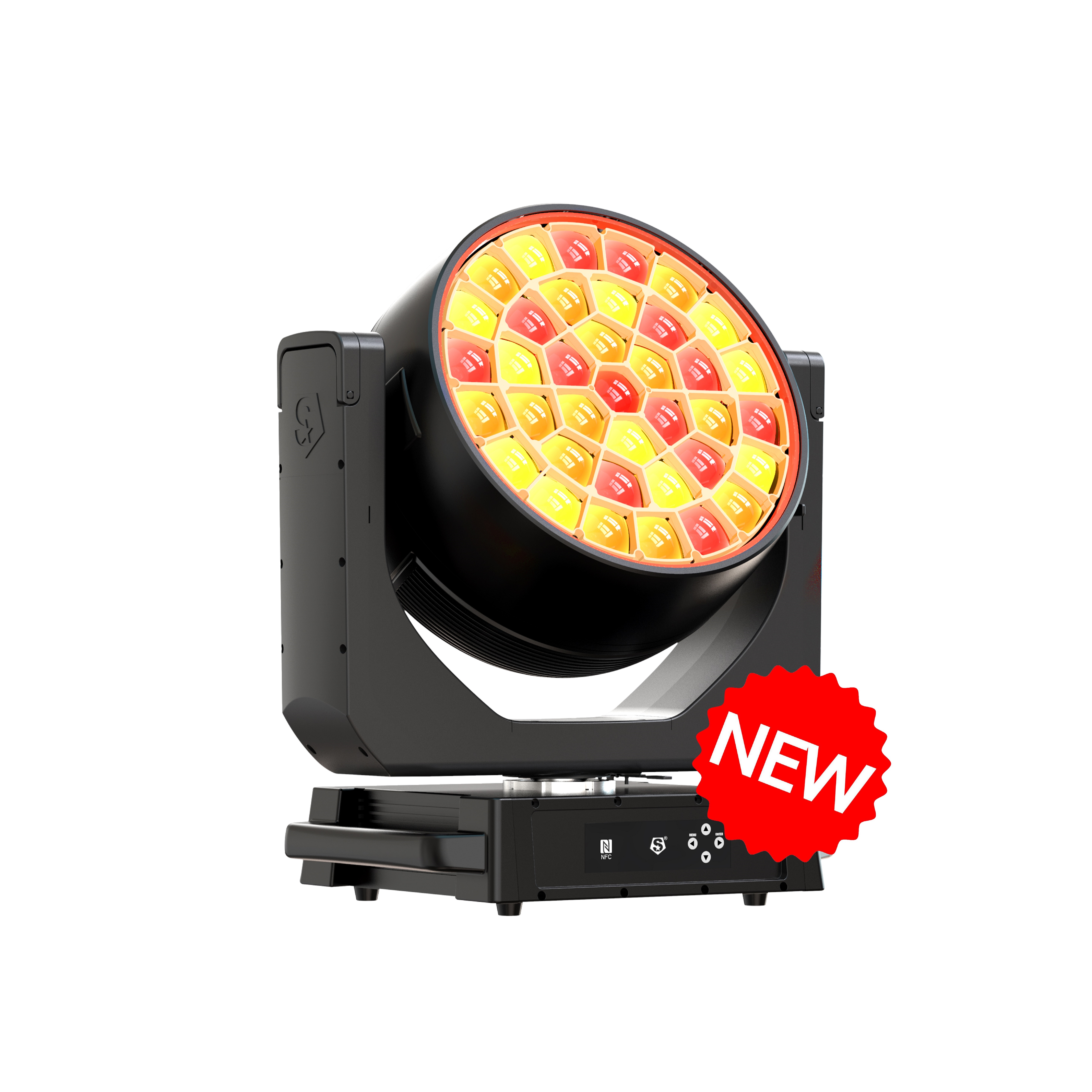

NW10
NW10 is a new genertation of excellent moving wash with RGBL LED source,optical Angle 3.5-60°, equipped with HSIC intelligent color mixing system, can quickly modulate any desired color, can be continuously adjusted between 1800K to 10000K, pixel control function, can achieve gorgeous dynamic effect, high-precision and high-tech CCS intelligent color management system for auto color calibration, it is an ideal choice for concerts, touring show, events, as well as rental markets.
DETAILS
Optical system
Light source
50Wx37pcs RGBL LED+LED ring + Double Masks Effec
Luminous flux
24000lm
Angle
3.5°-60°

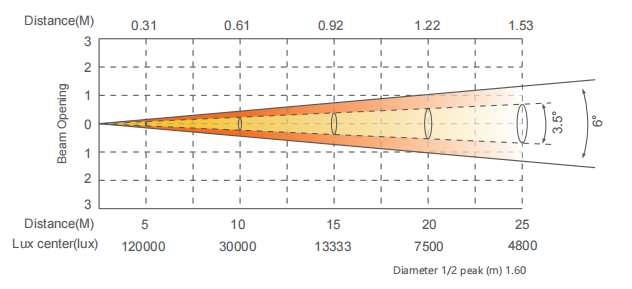

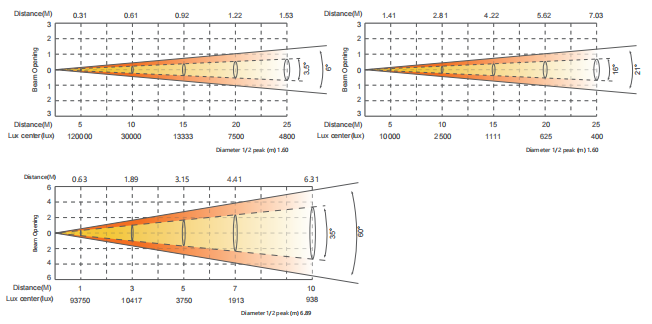

Illuminance
5m@120,000lx ，3.5
Appearance

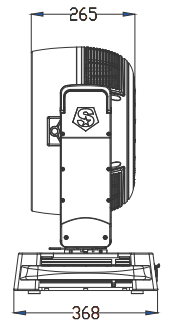

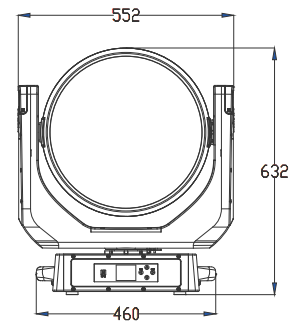

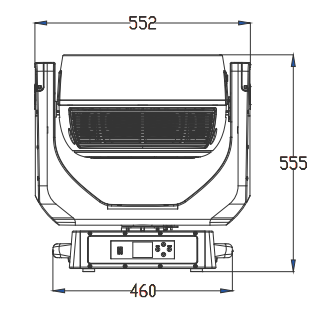

Size
552x368x632mm
Weight
36KG
Casing
Magnalium and Die-cast
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max.Power
1800W
Power Connection
power in
Signal socker
3pin or 5pin in and out, RJ45 in and out,USB-C
Control System
Pan/Tilt rotation
Infinite Pan/Tilt 270°(8-16bit)
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Control
DMX512、RDM、ARTNET、SACN、BT、NFC、W-DMX（optional）
Con Personality
HSIC(28CH)/SSP(26CH)/TOUR(33CH)/TR16(38CH)/CMY(32CH)/PIXEL(174CH)
Certification
CE
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
