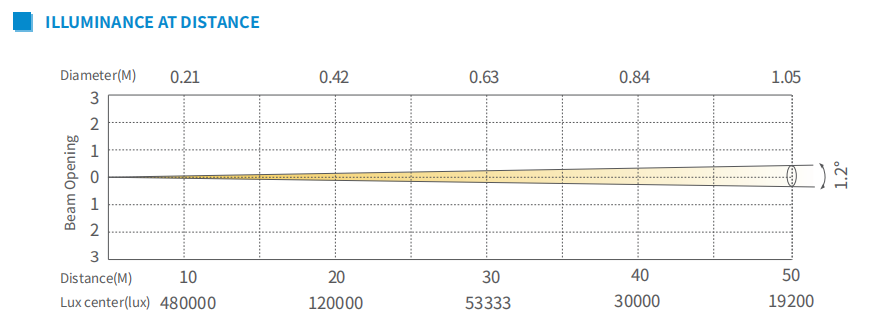

ILLUMINANCE

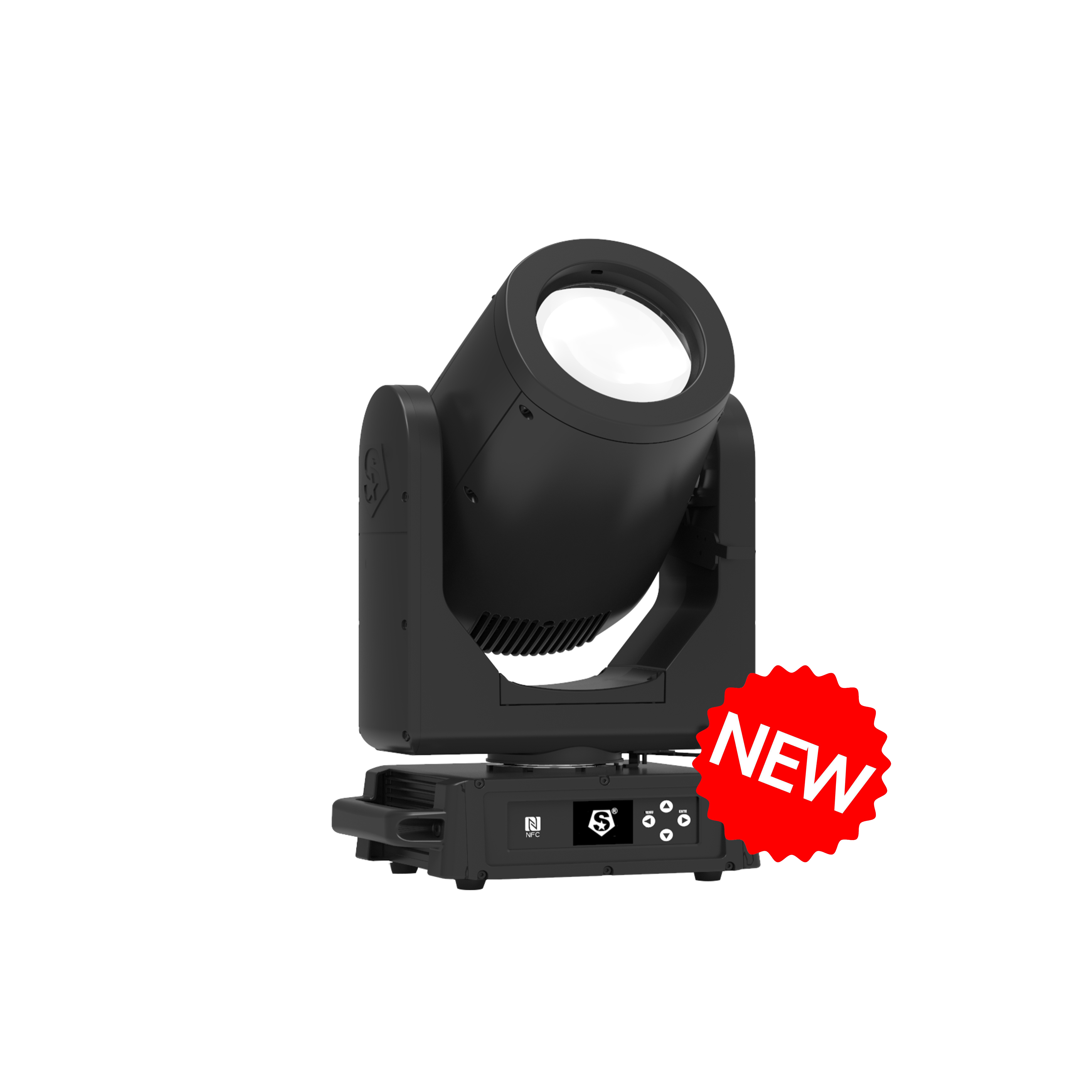

BXone
Neptune BX one is an innovative fixture that uses a unique X-ray design to create an infinitely beam effect. 120W laser light source, 135mm large light aperture, 1.2° beam Angle , illumi-nance up to 120000lux at 20m. strong and sharp beam. equipped with rich gobos and prisms that can support various lighting effects. Professional CMY color mixing system help to switch the colors extremly smooth. Infinite X rotating effect, create 3D fantasy atmosphere. Using new aviation aluminum cover, lightweight only 21kg, IP66 protection perfect for indoor and outdoor.Suitable for urban landscape lighting, concerts, indoor performances and other applications.
DETAILS
PRODUCT PARAMETERS
Optical system
Light source
120W LASER
Luminous flux
3300lm
Lens diameter
135mm
Angle
1.2° (20m @ 120,000lx)
Appearance
Size
330*222*518mm
Weight
21KG
casting
Die casting magnesium aluminum
Color
Black
Electrical Specs
Voltage
AC100-240,50/60Hz
Max.Power
200W
Power Connection
Power input and output
Signal socker
3pin or 5pin in and out
Control System
Pan/Tilt rotation
Infinite Pan, Tilt 270° (8-16 bit)
dimming
Opera dimming effect (0-100% 24Bit dimming)
Cooling system
Forced convection
Functional effect
Display control, custom mode, 0-25Hz stobe
Channel mode
BASIC(19CH)、STANDARD(23CH)、EXTEND(25CH)
Control protocol
DMX512、RDM、W-DMX(optional)、NFC
Effect synthetic system
Rotation gobo
12 rotation gobos
Colors
1 color wheel, 19 color + white, rainbow water effect
CMYK
CMY + CTO
prism
one 24 facet prism +one 6 linear prism, can be overlayed
Frost
one frost + one rainbow color wheel
Certification
CE
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
