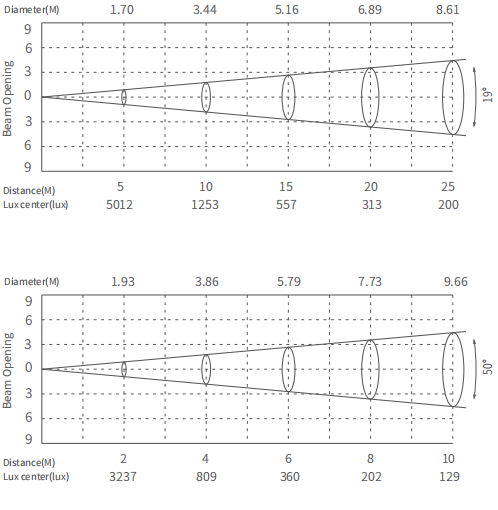

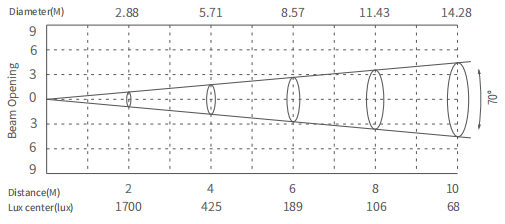

ILLUMINANCE
E-one(Manual Gobo)

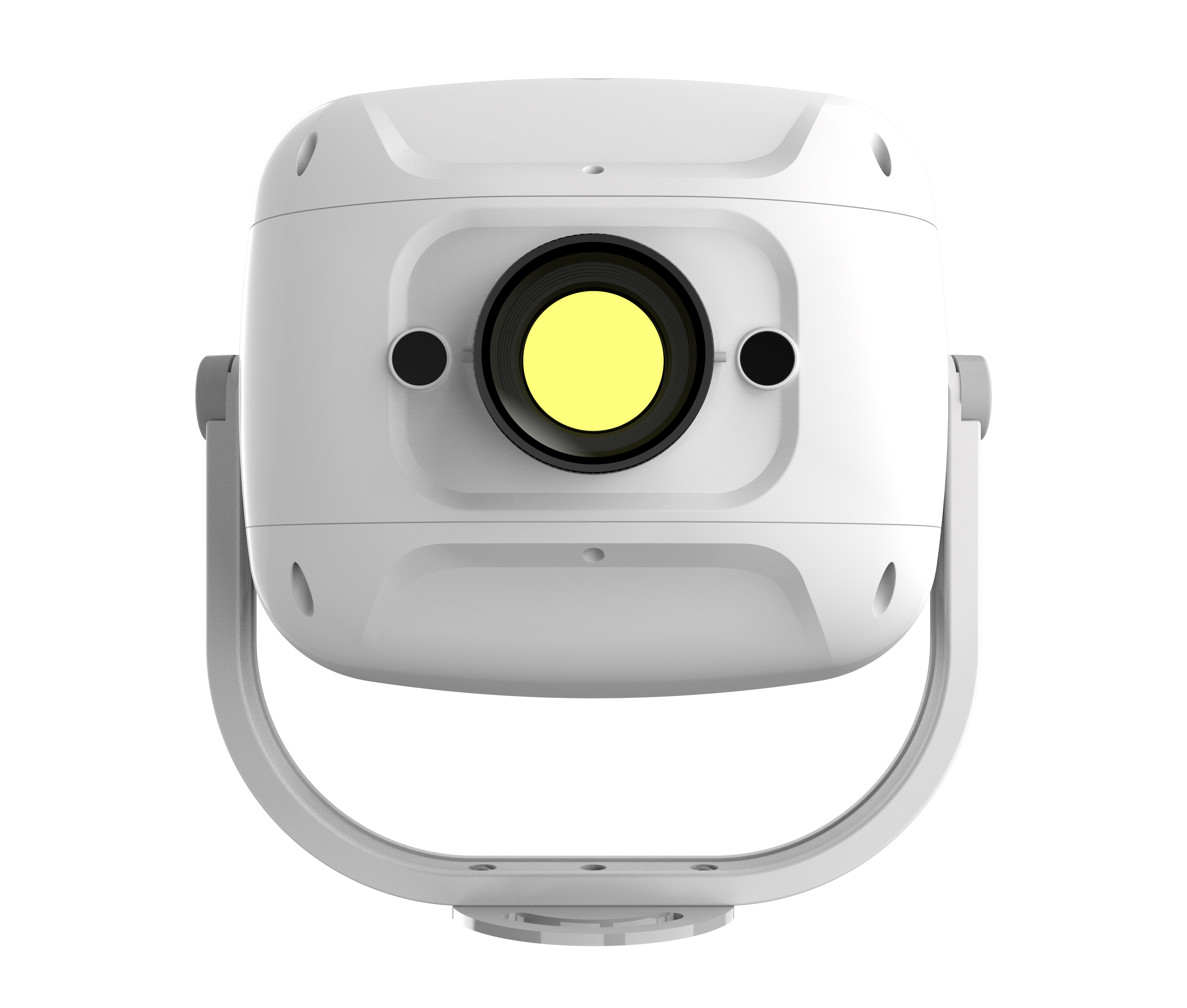

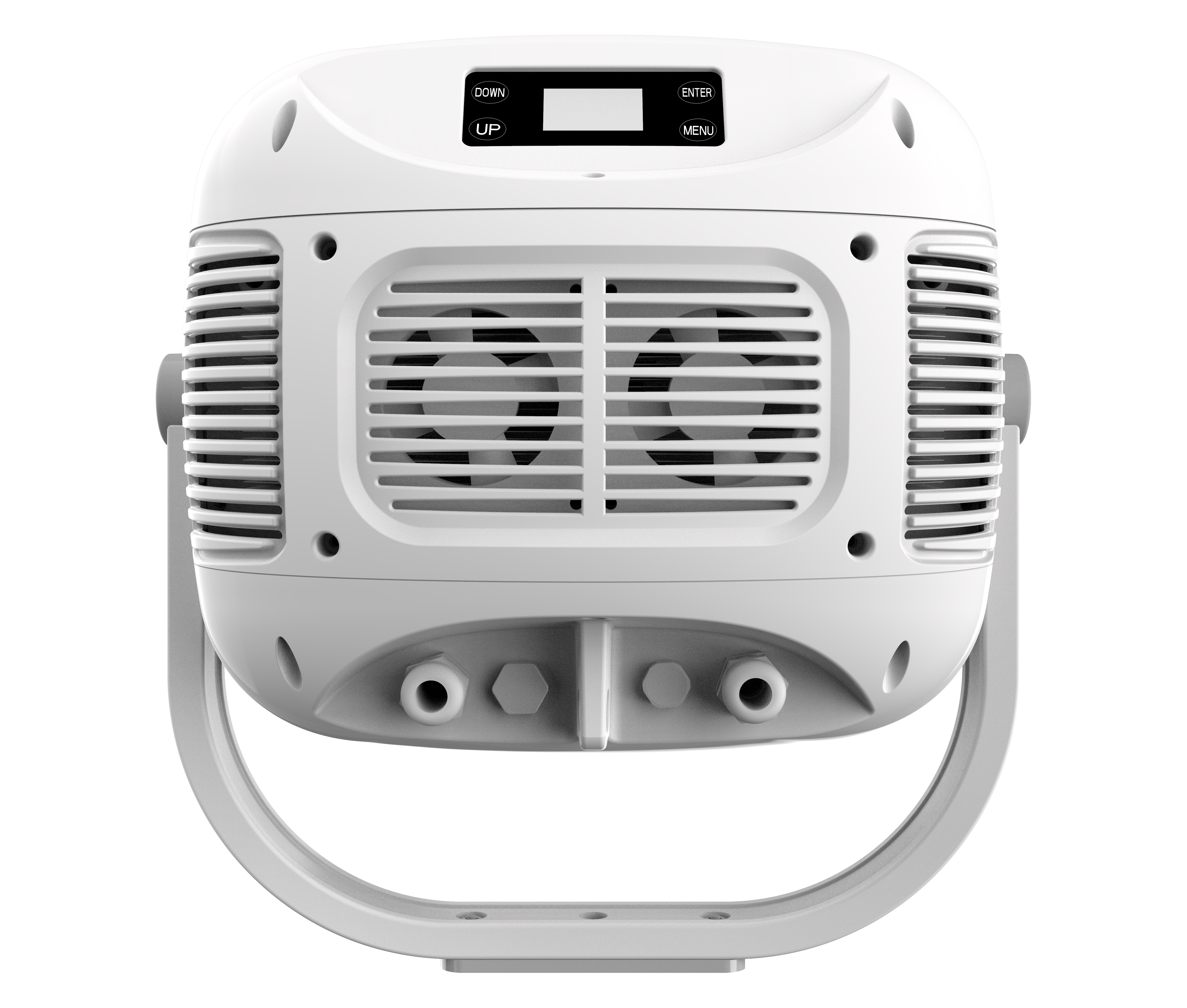

Eidolon Gobo Projector E-ONE featuring a rounded body with smooth lines for a simple, elegant dreamy planet. Equipped with a 400W high-luminosity LED light source delivering 12,000lx at 5m, it offers interchangeable manual zoom and focus lenses (12 ° , 19 ° , 30 ° , 50 ° , 70 ° ) for both long-distance clarity and wide-area coverage. The modular design enables quick on-site swaps between gobo, ripple, and framing effects. With an IP66 rating, it handles harsh climates effortlessly. Combining a "modular" design with "dynamic expansion + smart control" innovation, the E-ONE sets a benchmark in outdoor projection, offering a versatile, artistic, and high-performance solution for theme parks, attractions, landmarks, commercial plazas, and other architectural facades.
DETAILS
Technical Parameters
Model Number
AG1862SCT((Manual Gobo)
Max.Power
400W
Light Source
400W
Angle
12°、19°、30°、50°、70° Manual Zoom and Focus
Focus
Manual focusing
Display
On board Control, 0-25Hz Strobe
Con Personality
STANDARD(6CHS), BASIC(4CHS)
Color Wheel
One Color Wheel (6 Color Filters + Open, Rainbow Flow Effect)
Manual Fixed Gobo Kit
1 x Manual Rotating Gobo

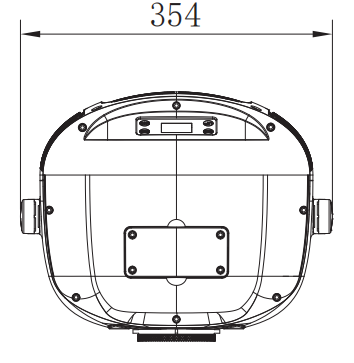

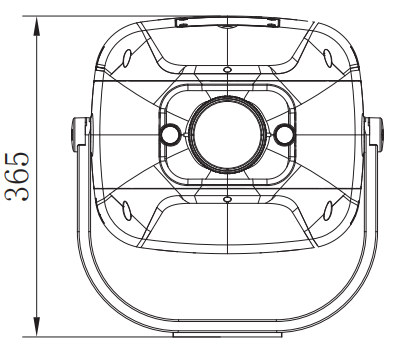

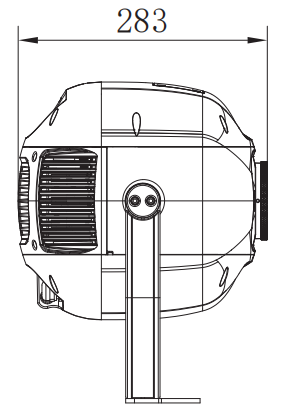

Dimensions(L*W*H)
354*283*365mm
Waterproof grade
IP66
Weight
10.8kg
