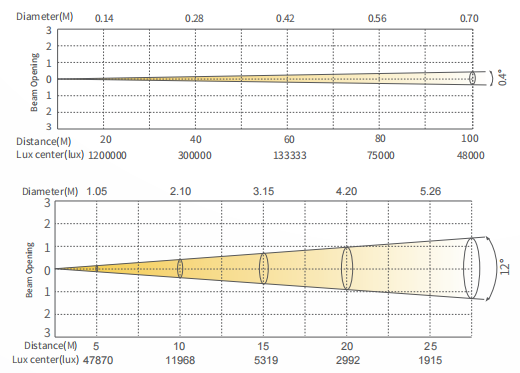

ILLUMINANCE
BX5-HT

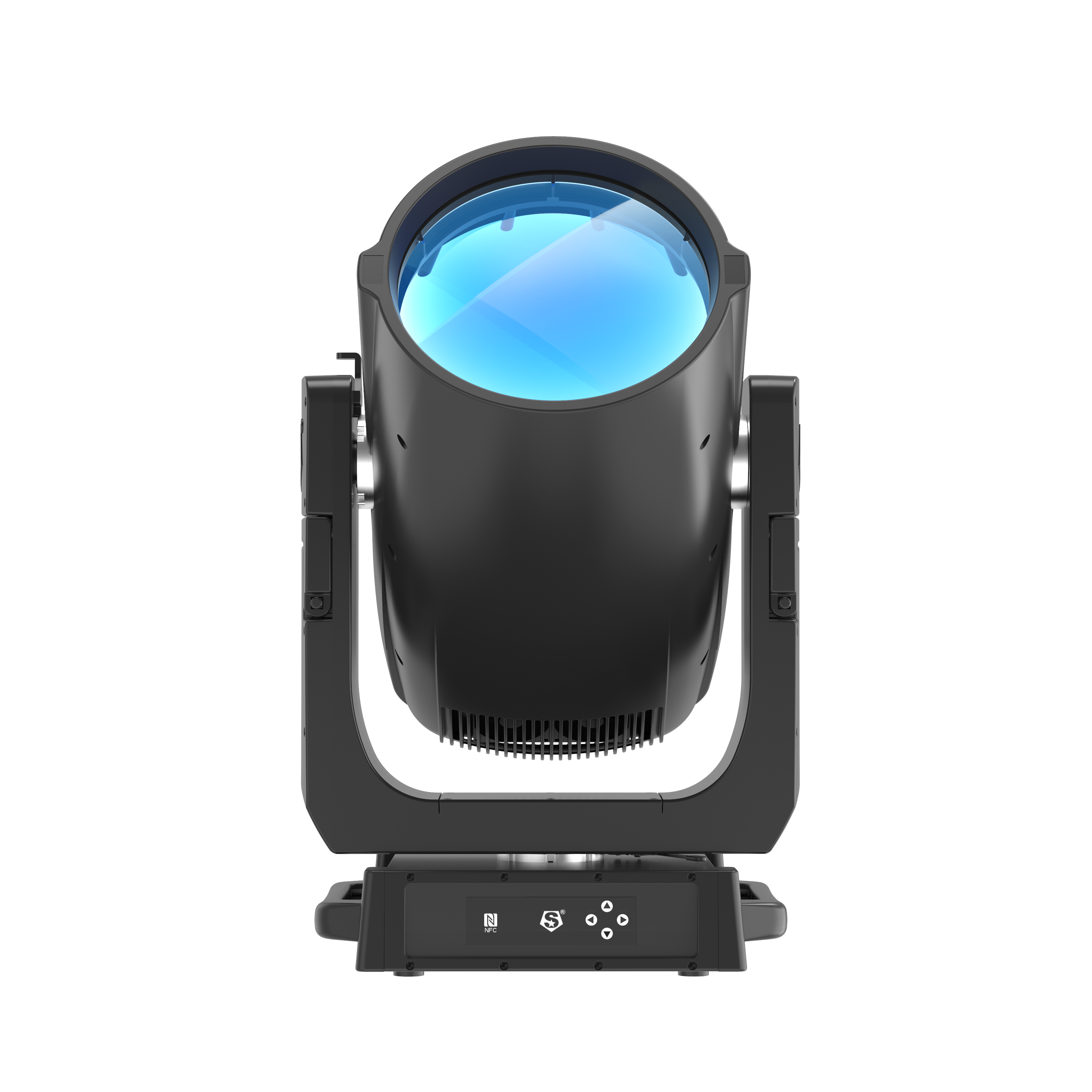

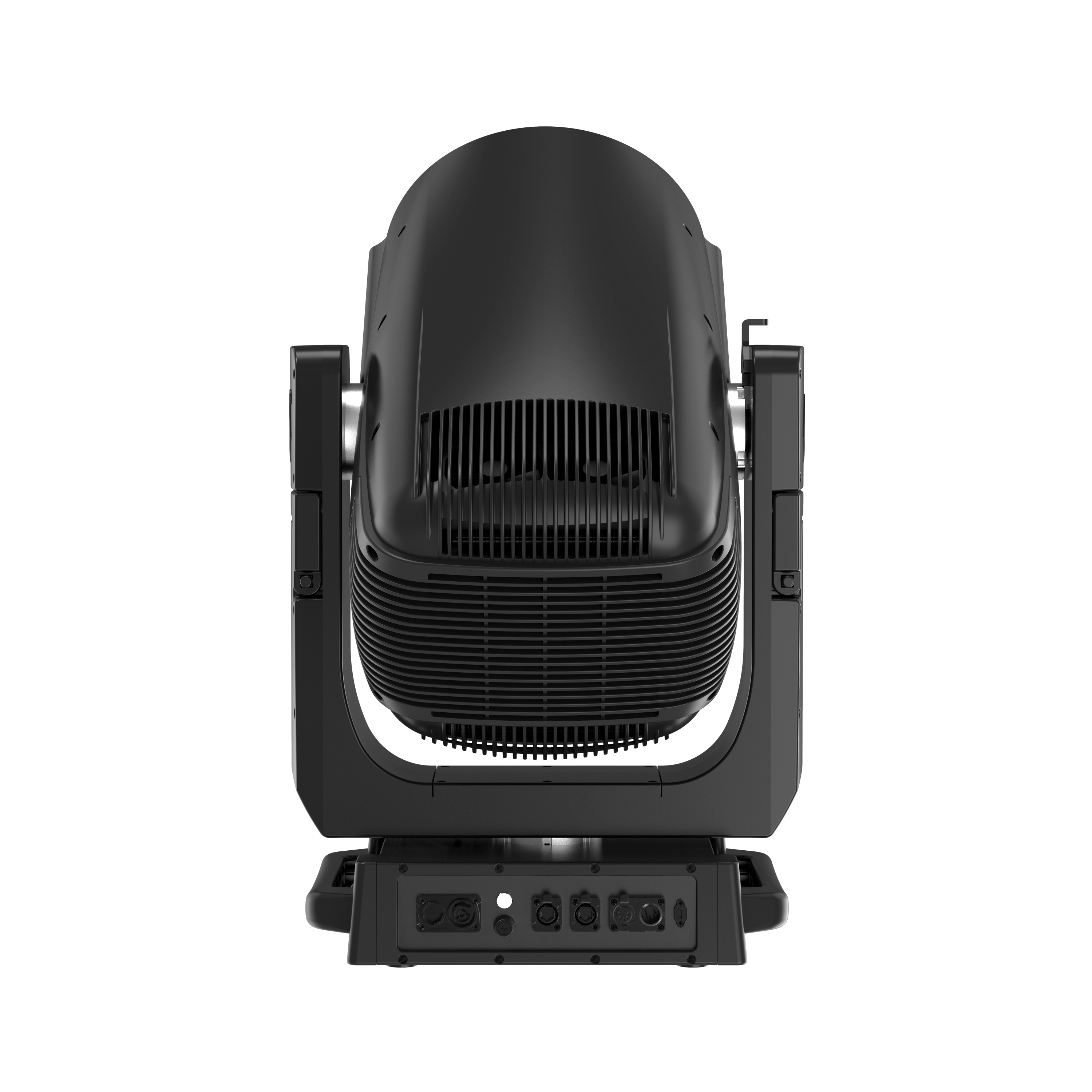

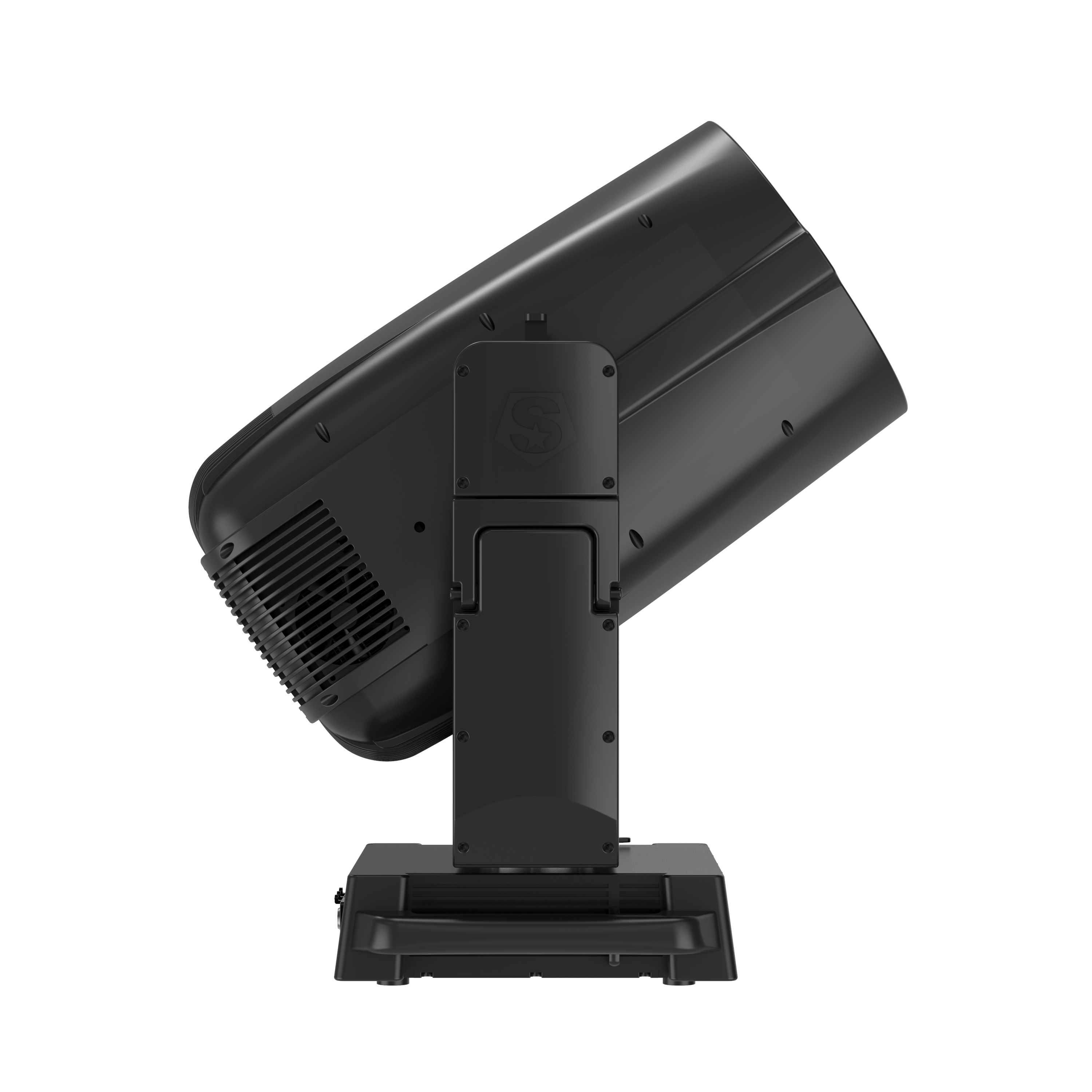

Neptune BX5-HT is a 500W laser light source, IP66 moving head beam. It can reach 1200000lux@
20meters with 0.4° super narrow angle. Beam is extremely strong and sharp thanks to its efficient
optics.Suitable for urban landscape, cultural tourism lighting, concerts, theme parks and other places.
DETAILS
Optical system
Light source
500W LASER
Angle
0.4°-45° (20m at 1200,000lux)
Appearance

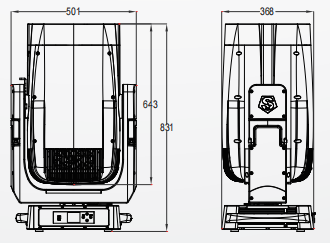

Size
501x368x831mm
casting
Magnalium and Die-cast
Weight
56KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max.Power
700W
Power Connection
Seetronic power input and output
Signal socket
3pin and 5pin in and out，RJ45 in and out
Control System
Pan/Tilt rotation
Infinite Pan/Tilt 270°
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Control
DMX512、RDM、ARTNET、sACN、W-DMX（optional）
Display
On Board Control, Custom Mode. 0-25Hz Strobe
Con Personality
BASIC/STANDARD/Extend
Effect synthetic system
Static Gobo
25 gobos+white
Colors
One color wheel(19 color+white, rainbow-floweffect)
Rotating Gobo
12 Gobos+white,Gobo-flow, Gobo shake, Bi-directional rotation
CMYK
CMY wheel,linear CTO function
3 Frosts
Light+Medium+Heavy
Prism
Prism 1：12 Facet prism+6 Linear prism+2 Linear prism Prism 2：6-Facet prism+ 24-Facet prism+3 Linear prism+ 6 Linear prism
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
Certification
CE
