N ONE-X
Neptune N one-X is an excellent lP66 moving profle with efficient optical system, CMY professional
color mixing system,17 times optical zoom, optical Angle 3°-52°.X/Y is faster and more accurate. Gobo
switching function is fast and sensitive. instantly switch a rich and colorful gobo efect, bringing vividly
perfomance to the audience. Suitable for both indoor and outdoor .it is a perfect product for theater
concert,theme park,amusement venues. etc.
DETAILS
Optical system
Light source
450W LED light source module

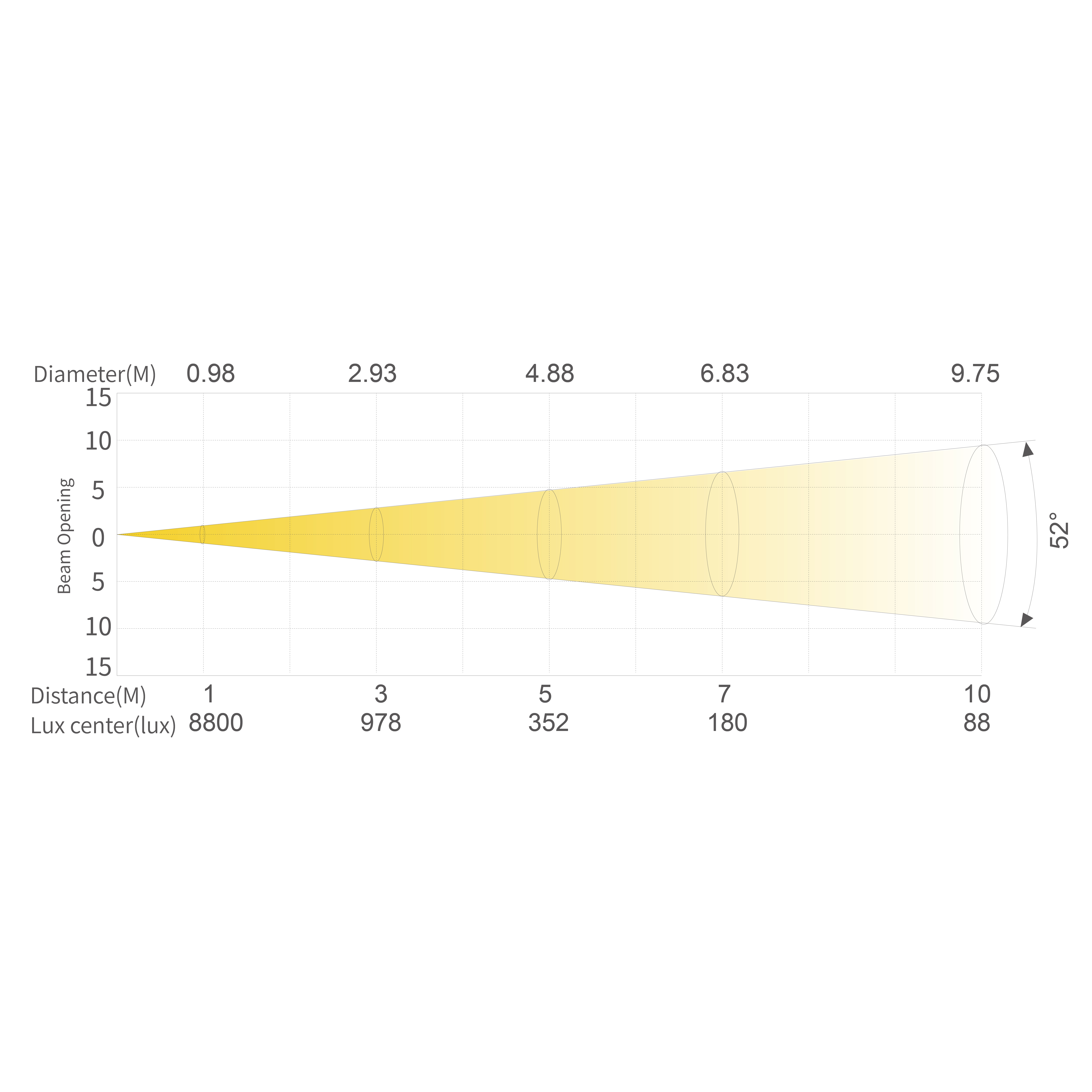

Angle
3°-52°
Luminous flux
13100lm

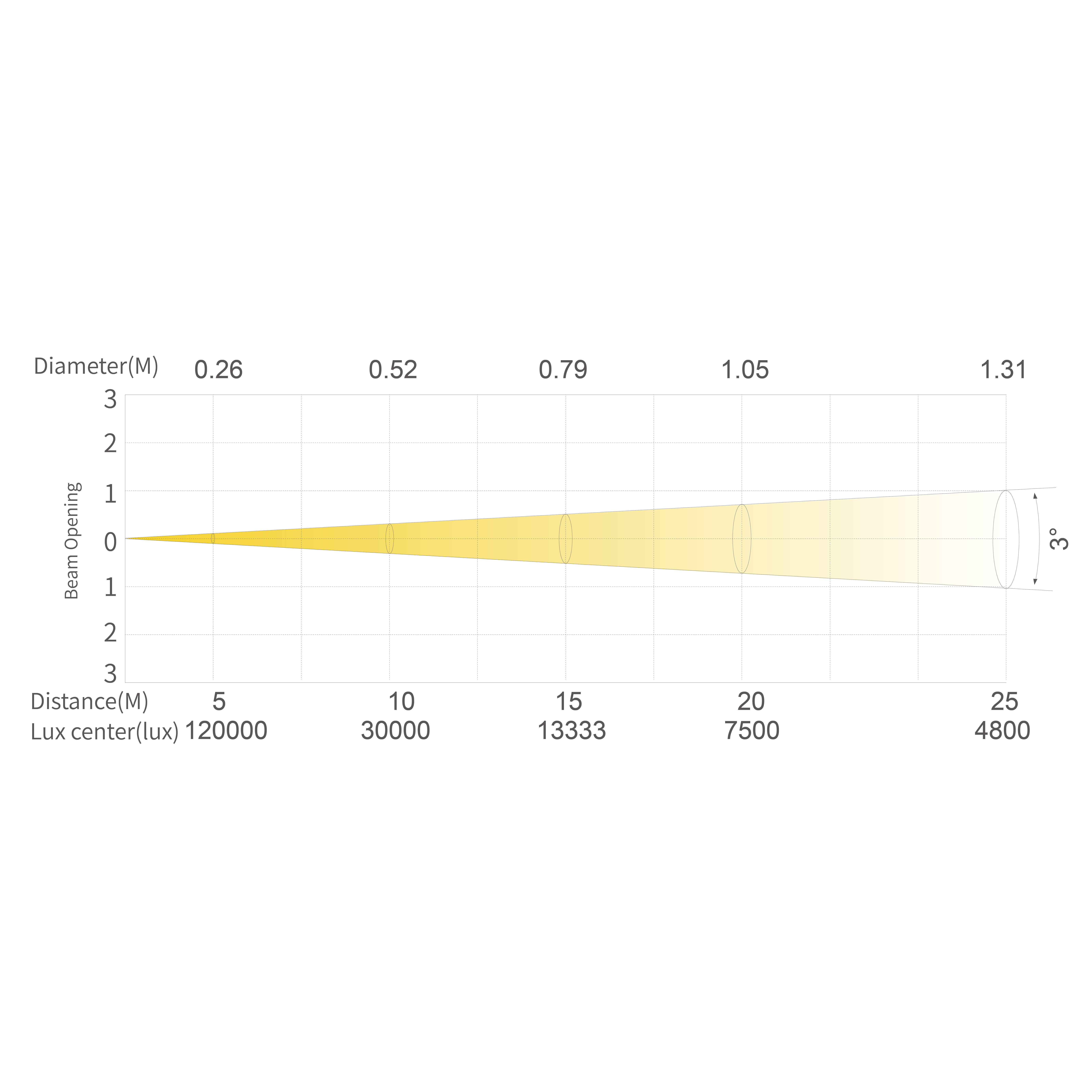

Illuminance
5m@120,000lux(3°)
CRI
RA
Appearance

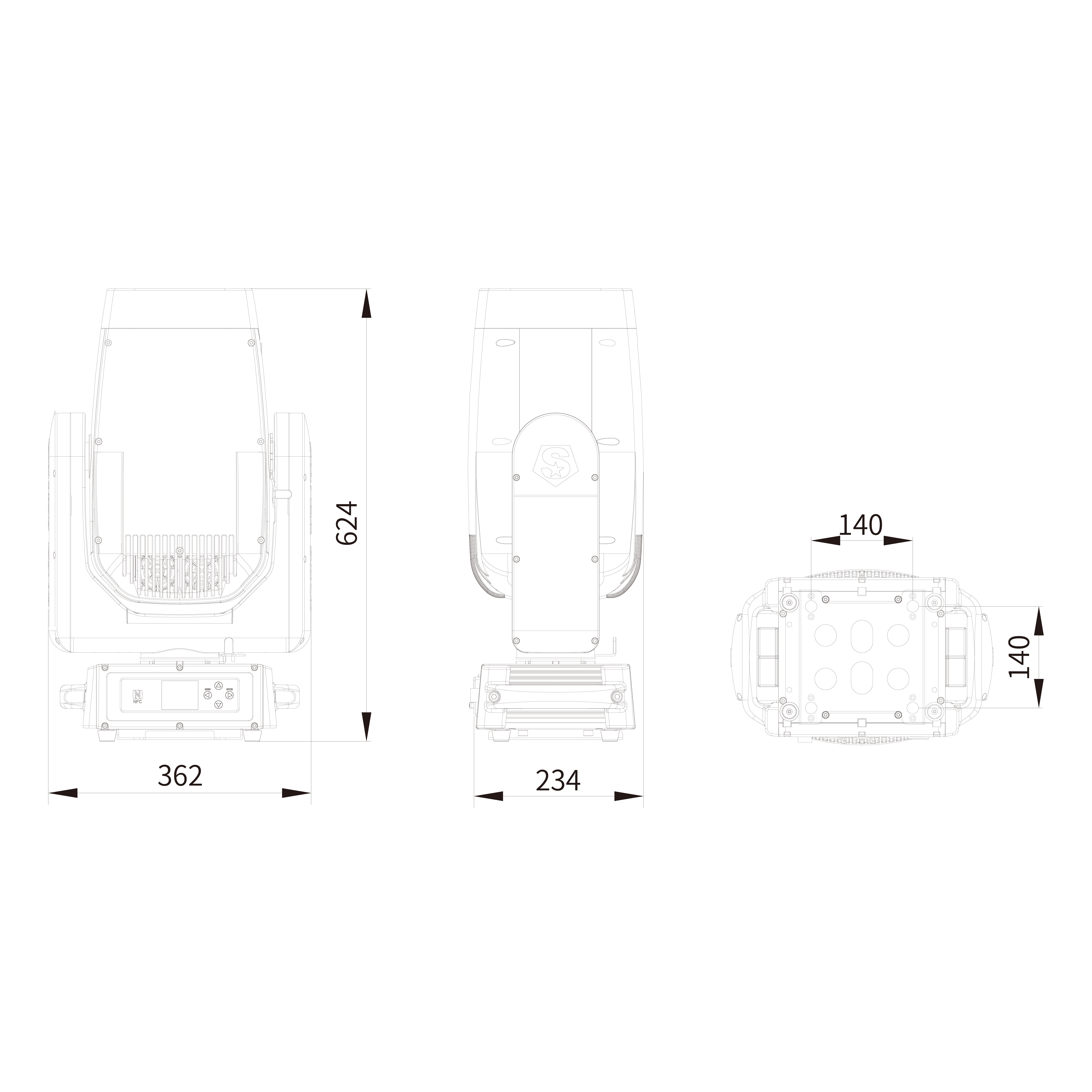

Size
362*234*624mm
casting
Die casting magnesium aluminum
Weight
27.2KG
Color
Black
Electrical Specs
Voltage
100-240VAC,50/60Hz
Max.Power
550W
Power Connection
power in and out
Signal socket
3pin and 5pin in and out
Control System
Pan/Tilt rotation
Infinite Pan/270°(8-16bit)
Dimmer
Opera dimming effect (0-100% 24Bit dimming)
Cooling
Air cooling
Functional effect
Display board control static, custom mode, 0-25Hz stroboscopic
Control protocol
DMX/RDM//NFC/Bluetooth/W-DMX（optional）
Channel mode
BASIC(22CH)/STANDARD(26CH)/EXTEND(29CH)
Effect synthetic system
Rotating Gobo
7 rotating pattem pieces + white light, pattern flow effect. positive and negative rotation
Colors
6+1 color piece
CMYK
CMY+CTO
Animation wheel
Bi-directional rotation,Speed adjustable
lns
5-100% linearly adjustable with macro
prism1
One 8 facet prism, Bi-directional rotation,Speed adjustable
prism2
One 6 linear prsm
2Frost
Light+Heavy
Framing system
4 cutting pieces, smooth cutting, cutting direction and Angle of each cutting piece can be independently controlled, The single piece can be completely closed, and the entire cuting module can be rotated +90°
Work Environment
Ambient Temp
-20℃-45℃
IP Rated
IP66
Certification
CE
