BX3 Plus
Neptune BX3 Plus is a 500W lP66 laser beam light, featuring an oversized 180mm lens. with an
extremely narrow beam angle of 0.6°, illuminance up to 410,000 lux at 20 meters. Efficient optics
enable it strong and sharp beam, like a bright lightsaber. ldeal for urbanlandscapes, cultural tourism
lighting, concerts, theme parks, and similar applications.
DETAILS
Optical system
Light source
500W LASER
Lens d ameter
180mm
Angle
0.6°-30°(20m at 410,000lux)
Appearance

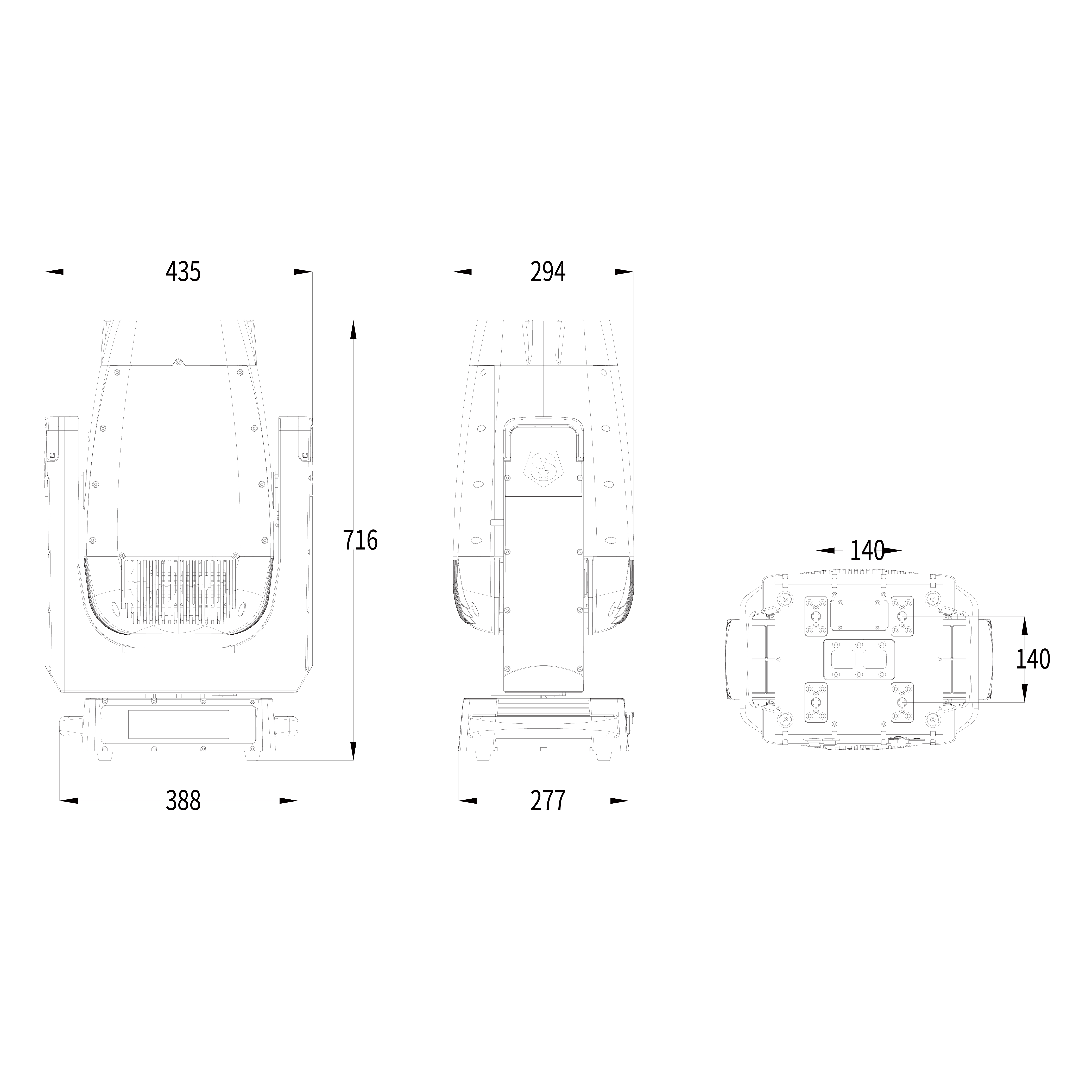

Size
435x294x716mm
casting
Magnalium and Die-cast
Weight
35kG
Color
Black
Electrical Specs
Voltage
100-240VAC.5060Hz
Max.Power
750W
Power Connection
Seetronic power input and output
Signal socket
3pin and 5pin in and out.RJ45 in and out
ElectricalSpecs
PanTilt rotation
Infinite PanTilt 270°
Dimmer
0-100% 24Bit
Cooling
Forced Convection
Display
On Board Control, Custom Mode. 0-25Hz Strobe
Control
DMX512、RDM、 ARTNET、 SACN、WDMX(optional)、 NFC、Bluetooth
Con Personality
BASIC(26CH)、STANDAR(32CH)、 Extend(38CH)
Effect synthetic system
Static Gobo
19 gobos+white
Colors
One color wheel(19 color+white, rainbow-flow effect)
Rotating Gobo
12 gobos+white, Gobo-flow, Gobo shake, Bl-directional rotation.
CMYK
CMY wheel.linear CTo function
3 Frosts
Light+Medium+Heavy
Animation wheel
Bl-directional rotation,Speed adjustfable
Prism
Prism 1:5 Facet prsm+8 Facet prsm+2 Linear prism+ 4 Linear prism+6 Linear prism Prism 2: 4 Facet prism+Elliptical mirror
Work Environment
Ambient Temp
-20°C-45°C
IP Rated
IP66
Certification
CE
