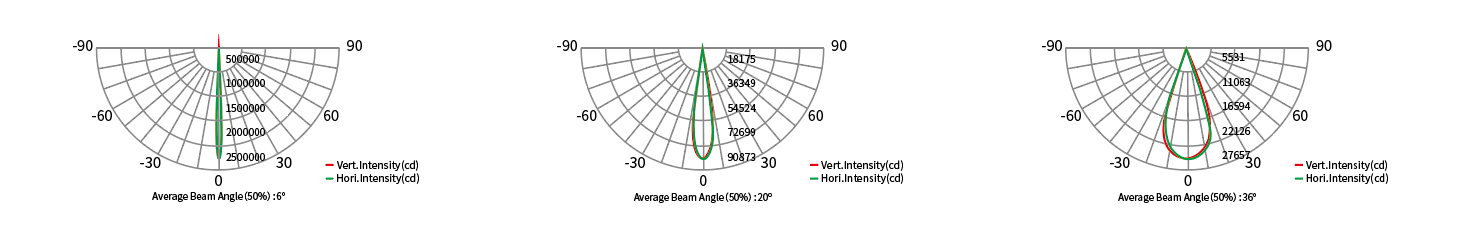

ILLUMINANCE

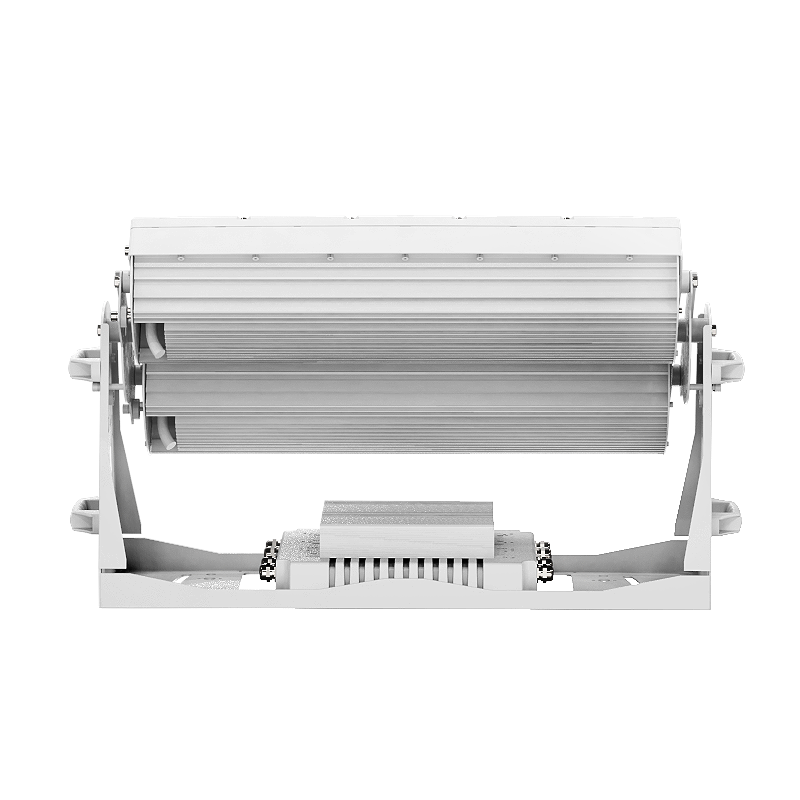

T84

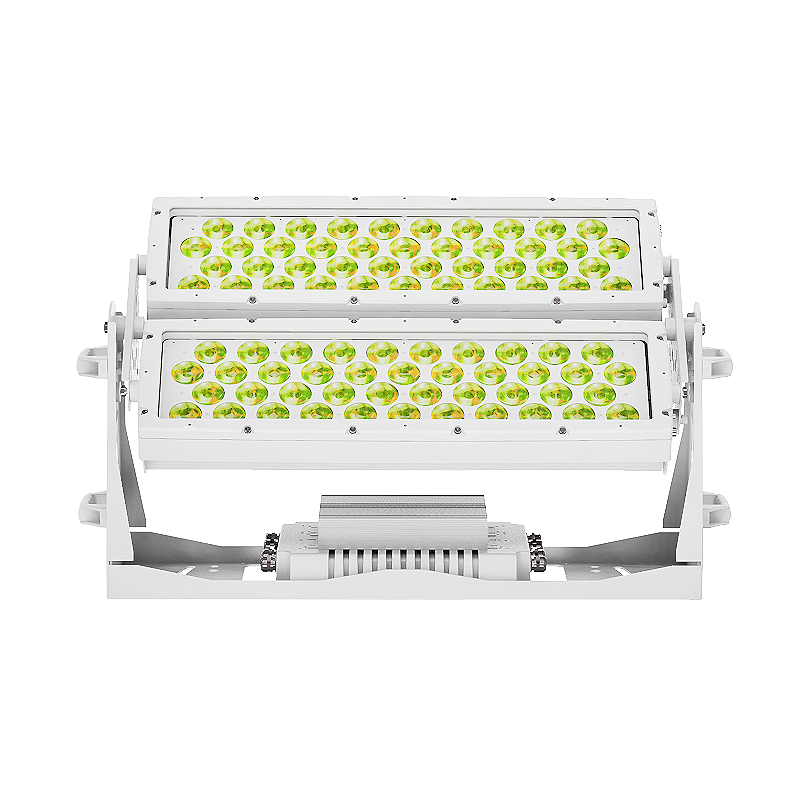

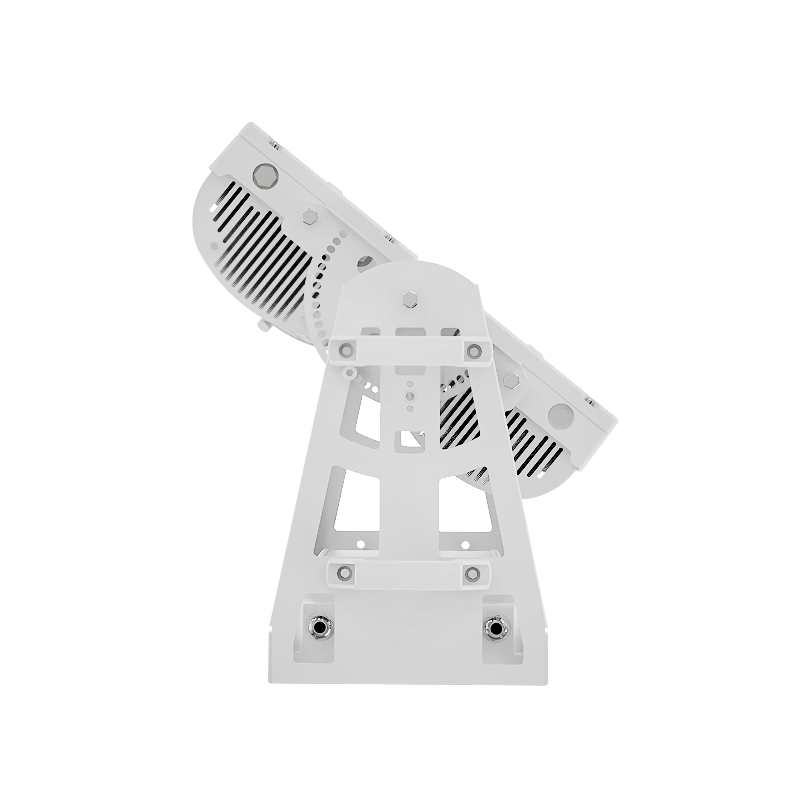

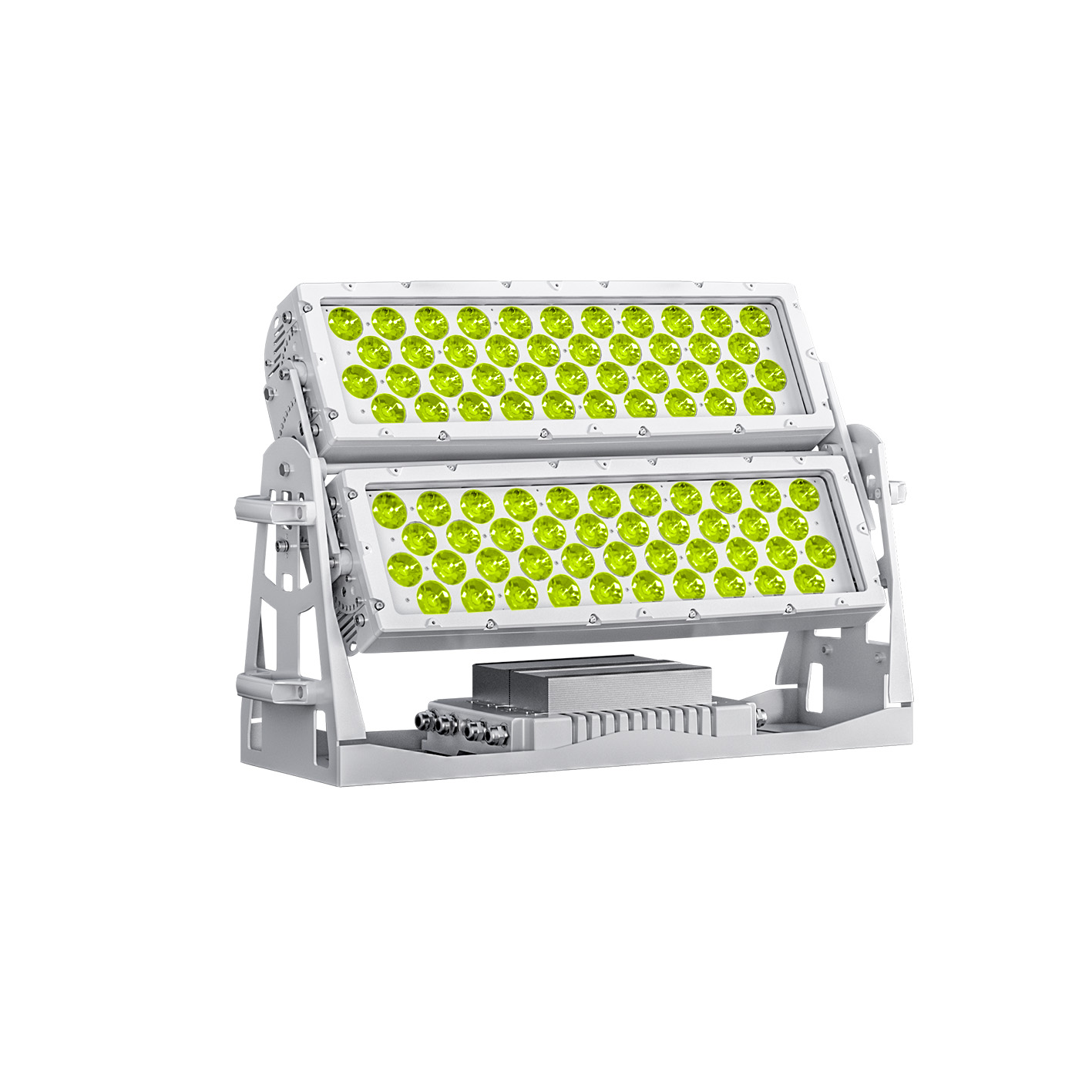

TARPON 84Q is a newly developed RGBL four-in-one high-power colour floodlight, with CCS colour management correction system and smooth 16Bit dimming technology. It is advantage feature with excellent colour mixing effect, high colour saturation, high light efficiency, high illumination, high performance and stability. it can achieve perfect colour interpretation and super long light-emitting distance. Optional wireless DMX512 control mode and RDM two-way feedback function, it providing a variety of large-scale outdoor lighting projects with varieties lighting solutions. Product series are rich and complete, the light is ideal for large-scale occasions such as towers, bridges, large venues and comprehensive commercial buildings.
DETAILS

TECHNICAL DATA

LED Qty
84pcs 4 in 1 RGBL(RGBA/RGBW)
Optics
6°、10°、15°、20°、30°、36°
Lumen
28728lm
Peak Intensity
1272225cd(6°)
Controllable sections
8

PHYSICAL

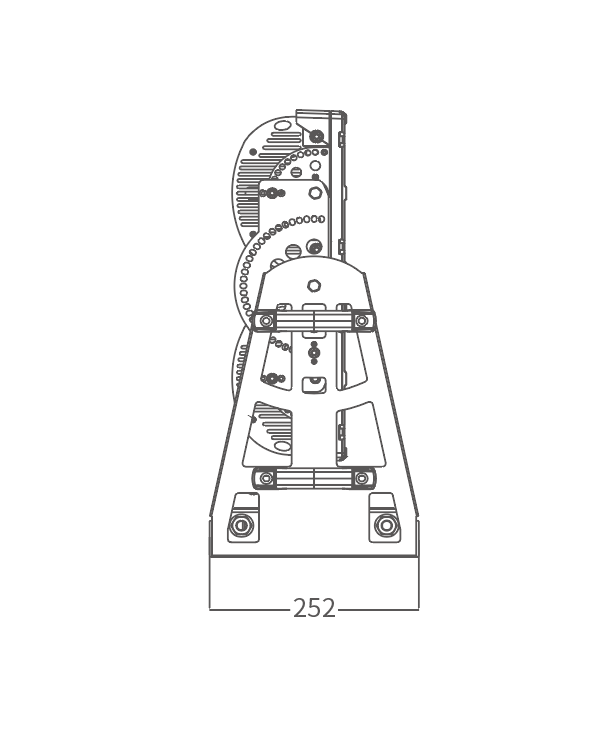

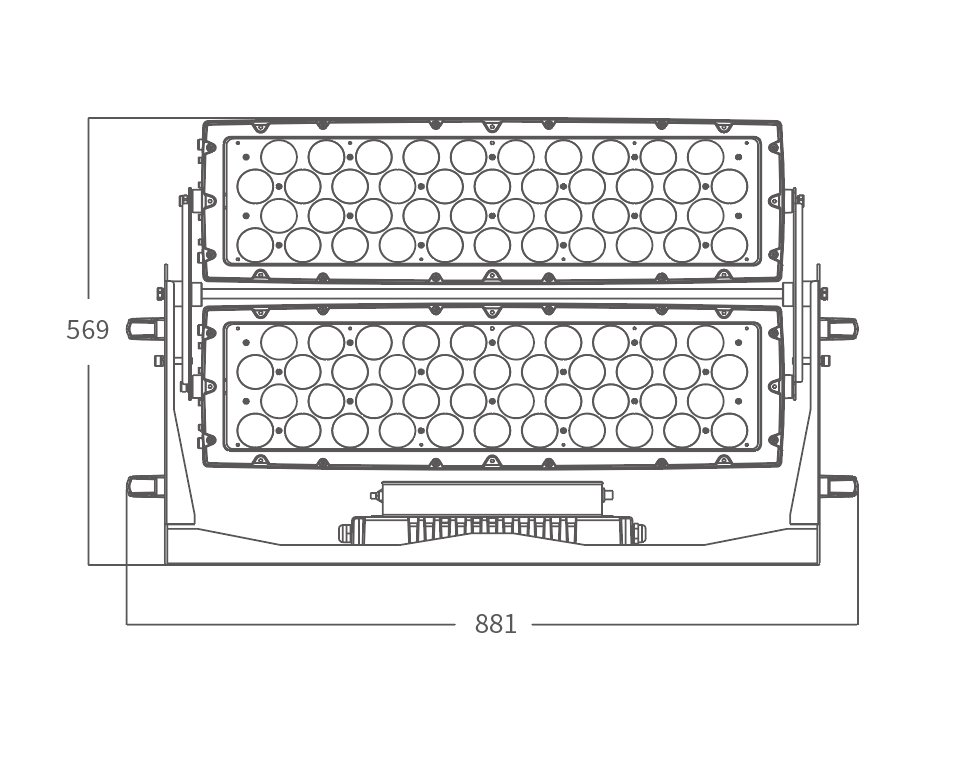

Dimensions
881*252*569mm
Weight
45.3kg
Housing
Die-cast aluminium

ELECTRICAL

Input voltage
AC100-240V
Max.power
1200W

SYSTEM SPECIFICATIONS

Dimmer
Dimmer(0-100% 16Bit)
cooling system
Forced Convection
Control protocol
DMX512、RDM

OPERATING AMBIENT

Operating Temperature
-20℃-45℃
Ingress protection
IP67
