ECLIPSE 250 SD is specifically designed for replacing the traditional lamp Ellipsoidal, which can completely support for dimmer pack control, 0-100% dimming, dimming smooth, no shading. It can truly replace the traditional 750W Ellipsoidal. Intelligent power management system can automatically recognize the DMX 512 Protocol and SCR. Intelligent dimmer and zoom knob. It has uniform spot and pure color temperature. Its CRI>95, with compact structure, professional industrial design, it is truly energy saving fixture.
DETAILS
Optical system
SS5153SWD
Light source
300W LED
CCT
3200k
CRI
98
TLCI
98
CQS
96
Angle
5°/10°/14°/19°/26°/36°/50°/15-30°/25-50°

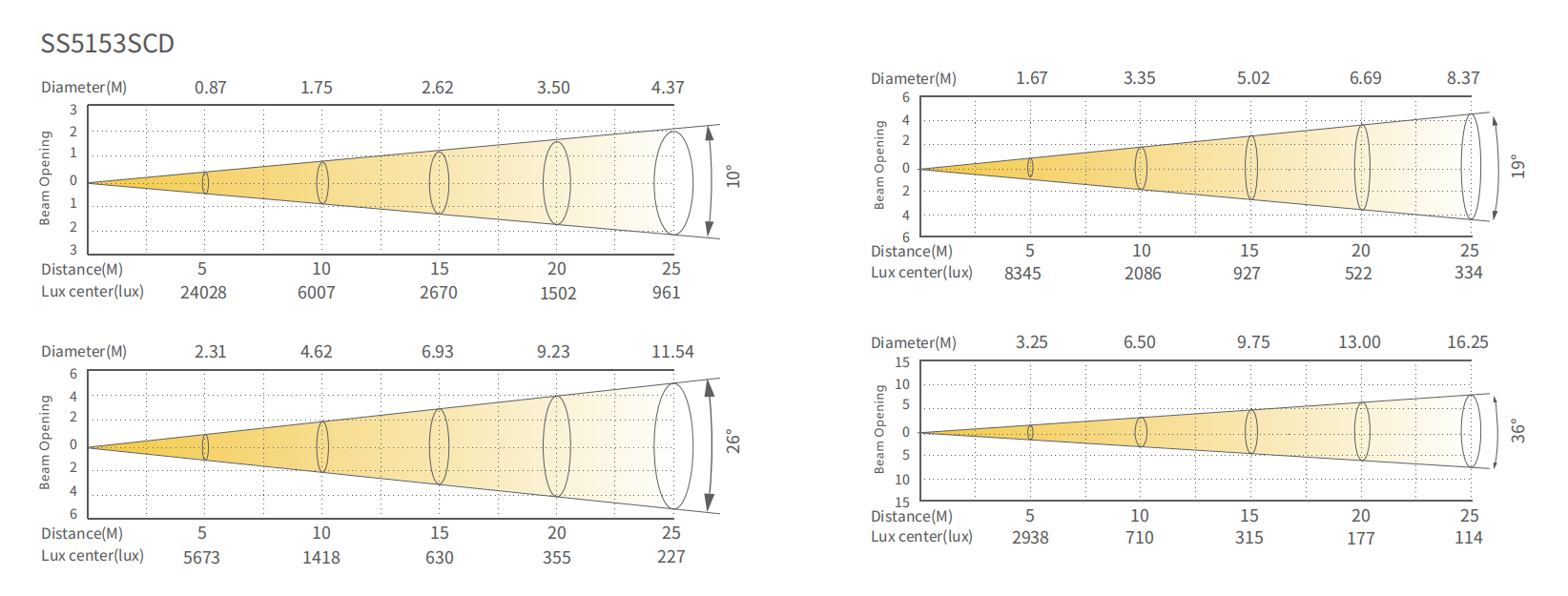

SS5153SCD
Light source
300W LED
CCT
5600k
CRI
96
TLCI
96
CQS
93
Angle
5°/10°/14°/19°/26°/36°/50°/15-30°/25-50°
Control System
Dimmer
0-100%16Bit
Cooling
Forced Convection
Control
DMX、RDM、Dimming Pack Control
Display
On board Control,0-25Hz Strobe
Con Personality
UNO（1CH）、DOS（2CH）、STD.P（3CH）
Electrical Specs
Voltage
AC100-240V,50/60Hz
Max. Power
240W
Power Connection
Power in and out
DMX XLR
DMX in and out
Work Environment
Ambient Temp
0 ℃ -45℃
IP Rated
IP20
