T72

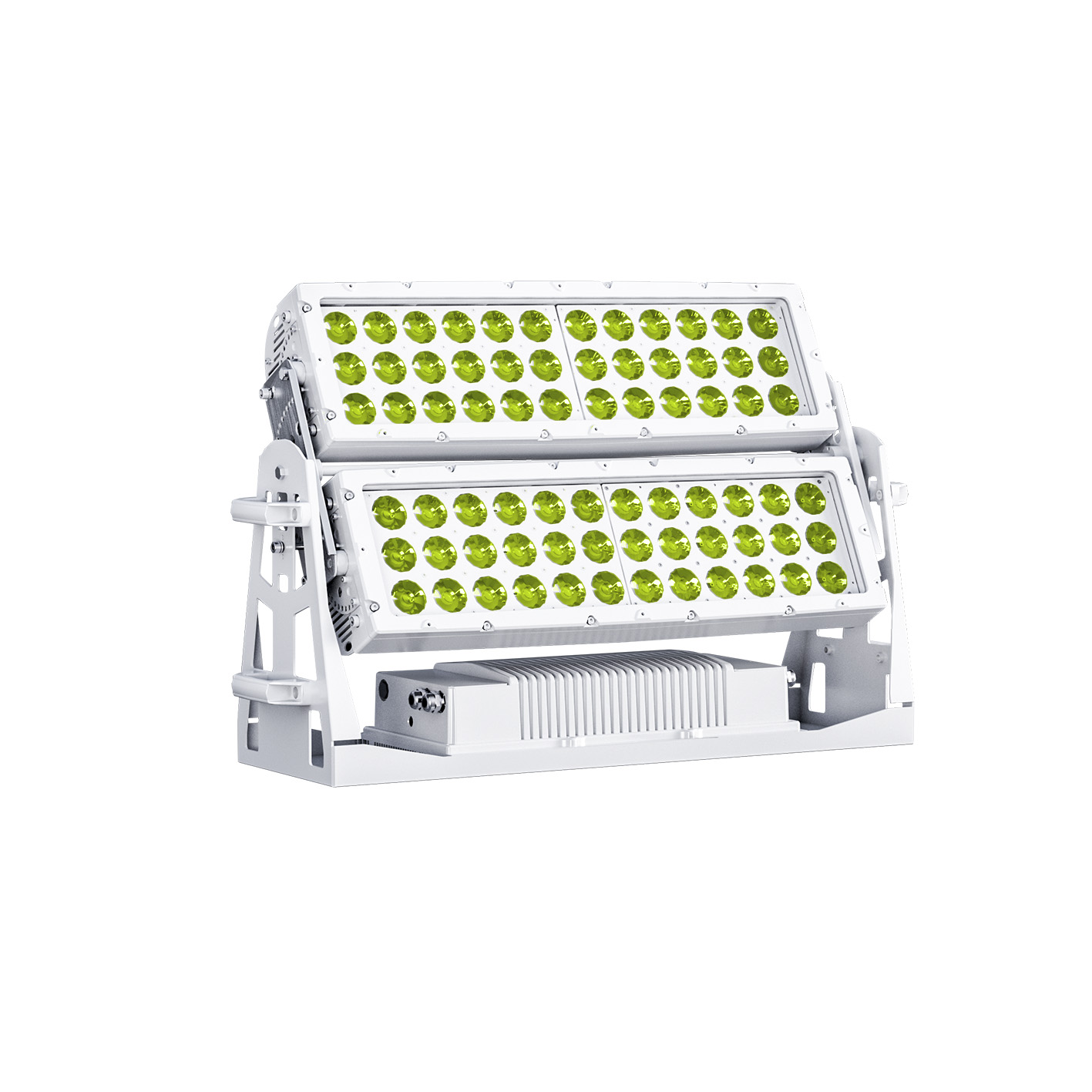

TARPON 72Q is a 20W/LEDs, powerful, compact and efficiency led spot light. carry the color consistency system as a good advantage, full range lens optics and uniform color mixing, designed to illuminate large structures, skyscraper facades and bridges.
DETAILS

TECHNICAL DATA

LED Qty
72pcs 4 in 1 RGBL(RGBA/RGBW)

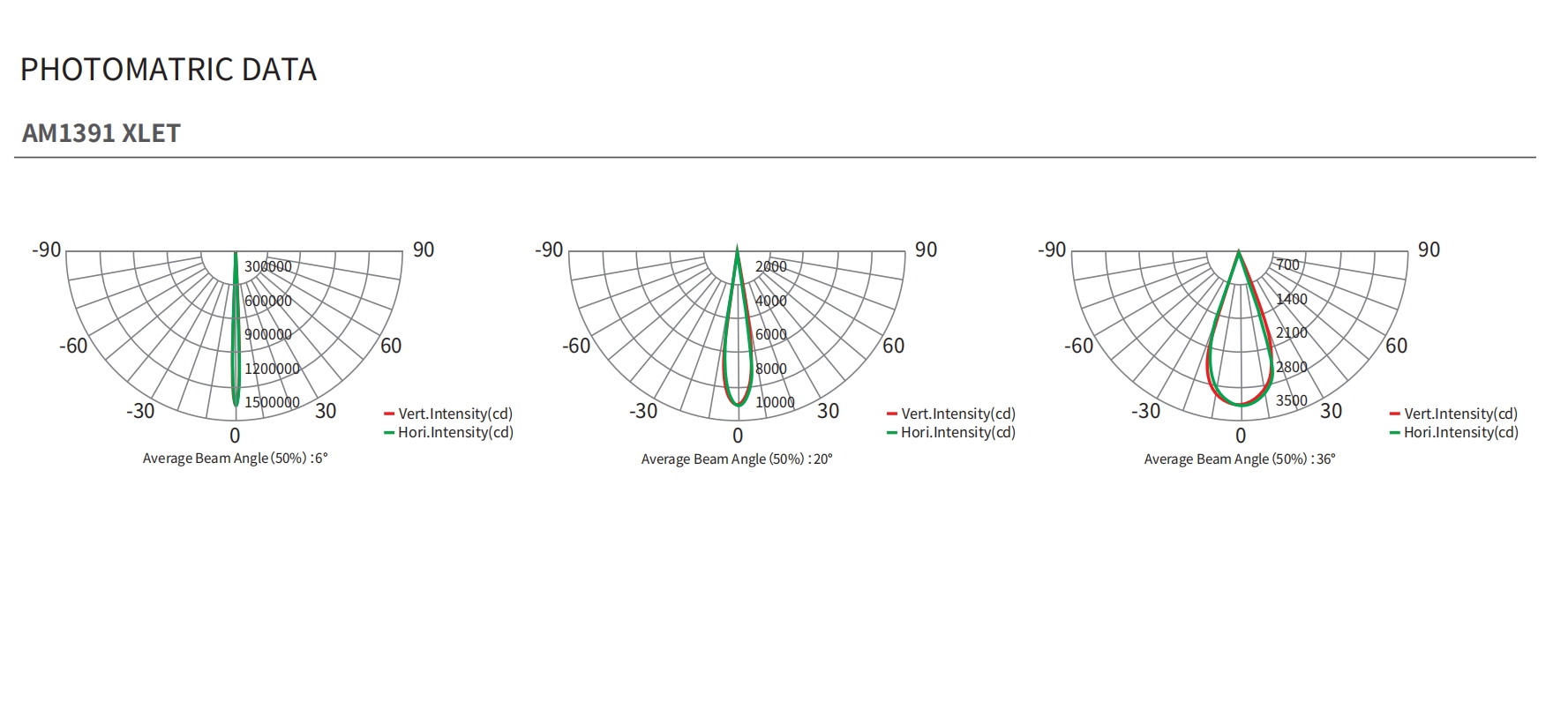

Optics
6°、10°、15°、20°、30°、36°
Lumen
23940lm
Peak Intensity
1060200cd(6°)
Controllable sections
8

PHYSICAL

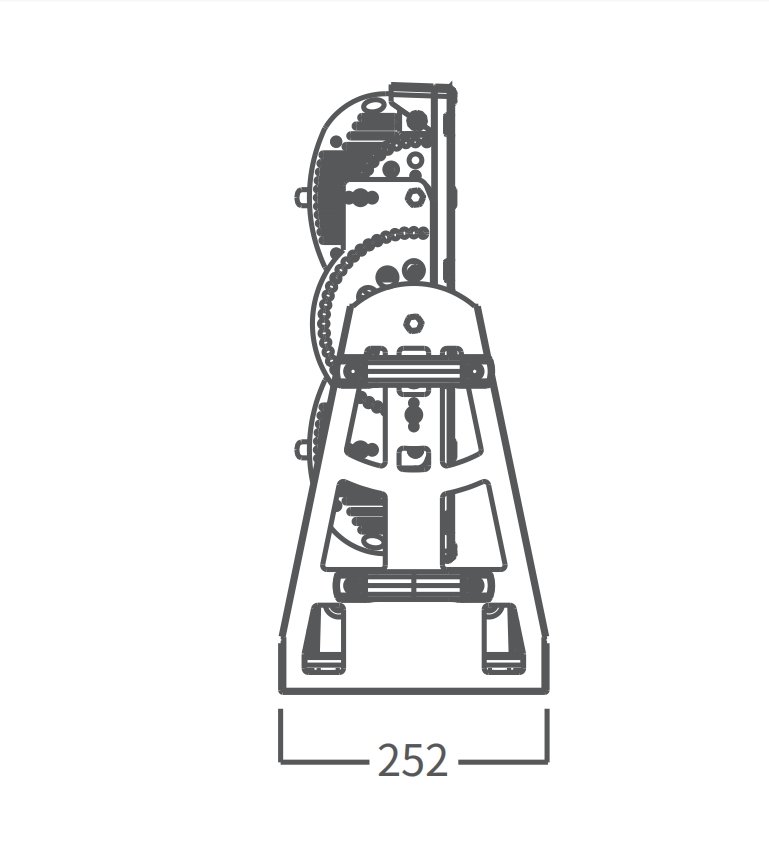

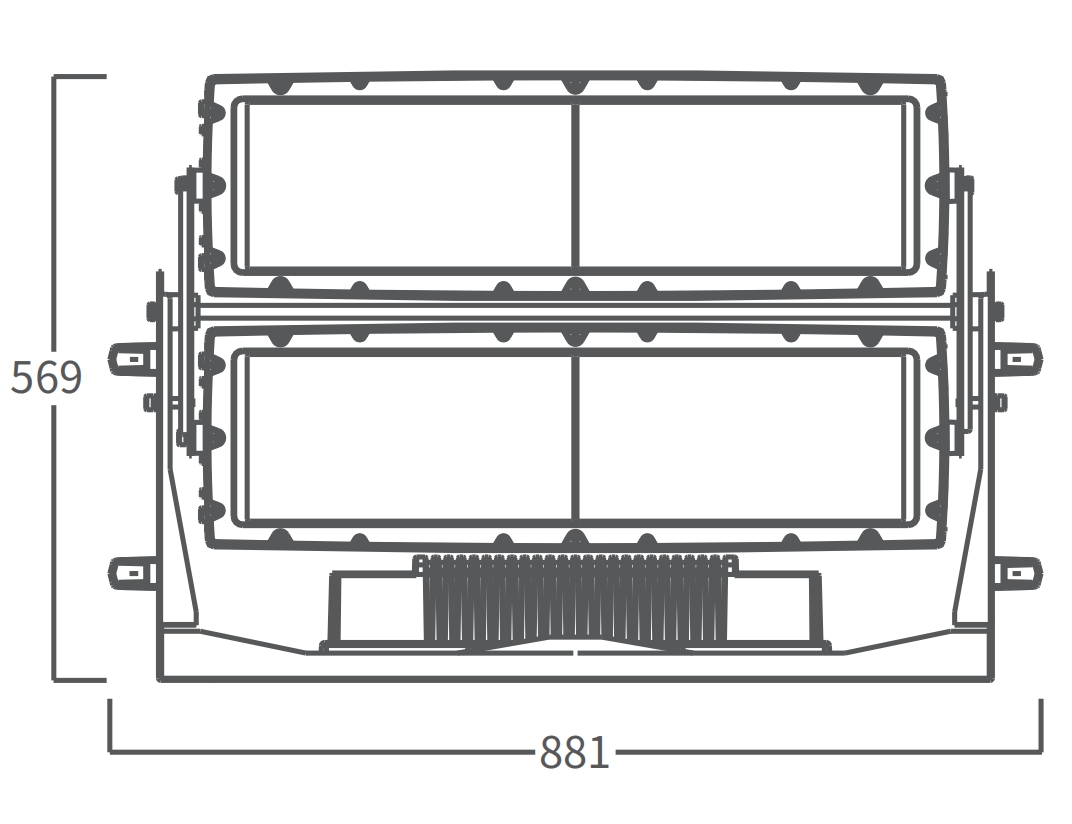

Dimensions
881*252*569mm
Weight
45.3kg
Housing
Die-cast aluminium

ELECTRICAL

Input voltage
AC100-240V
Max.power
900W

SYSTEM SPECIFICATIONS

Dimmer
Dimmer(0-100% 16Bit)
cooling system
Forced Convection
Control protocol
DMX512、RDM

OPERATING AMBIENT

Operating Temperature
-20℃-45℃
Ingress protection
IP67
