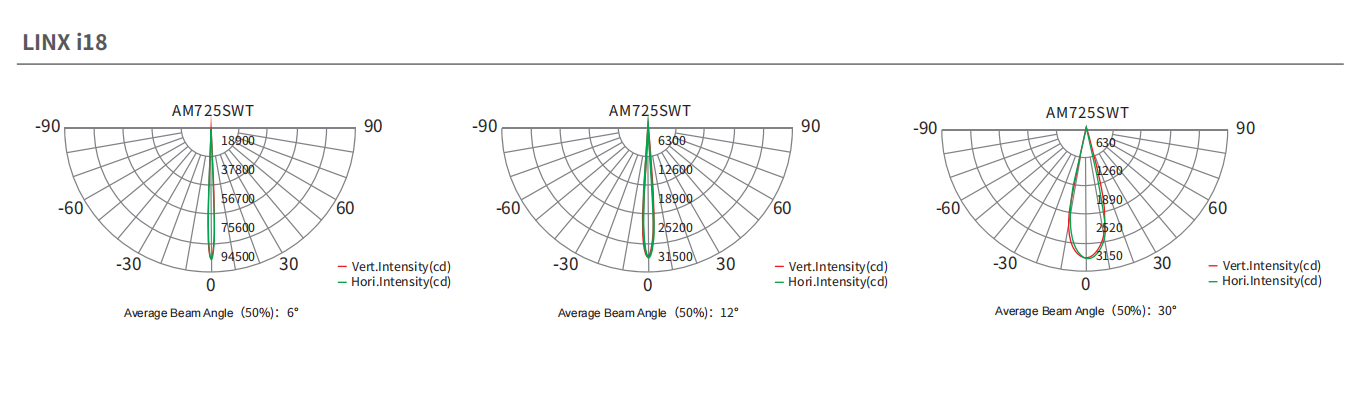

ILLUMINANCE

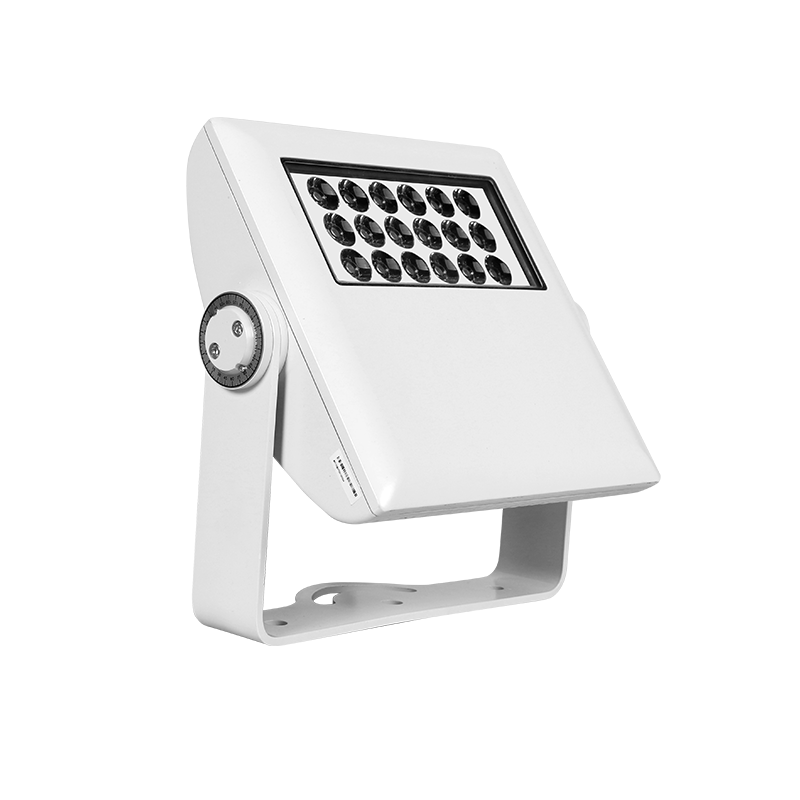

LINX i18

AM725SCT/SWT

LINX i18 uses a narrow angle lens to achieve a supper narrow output beam angle effect and high luminous intensity. The color temperature of the led chips can be arbitrarily matched to meet the needs of various application scenarios. At the same time, with IP67 rated is suitable for permanent instllation, used in hotel lighting, theme parks, bridge lighting and other lighting projects.
DETAILS

TECHNICAL DATA

PRODUCT
LINX i18 AM725SWT(SCT/CAT)
Max.Power
60W
Lumen
2520lm
Peak Intensity
94500cd (6°)
LED Qty
18pcs,W/C/N/A*18
Optics
6°、12°、15°、20°、30°、36°

DOWNLOAD

leaflet

LINX i18 AM725SCT SWT 2023-11-11
DONWLOAD

user manual

LINX i18 AM725SCT SWT 2023-11-11
DONWLOAD
