PHOTOS
VIDEOS

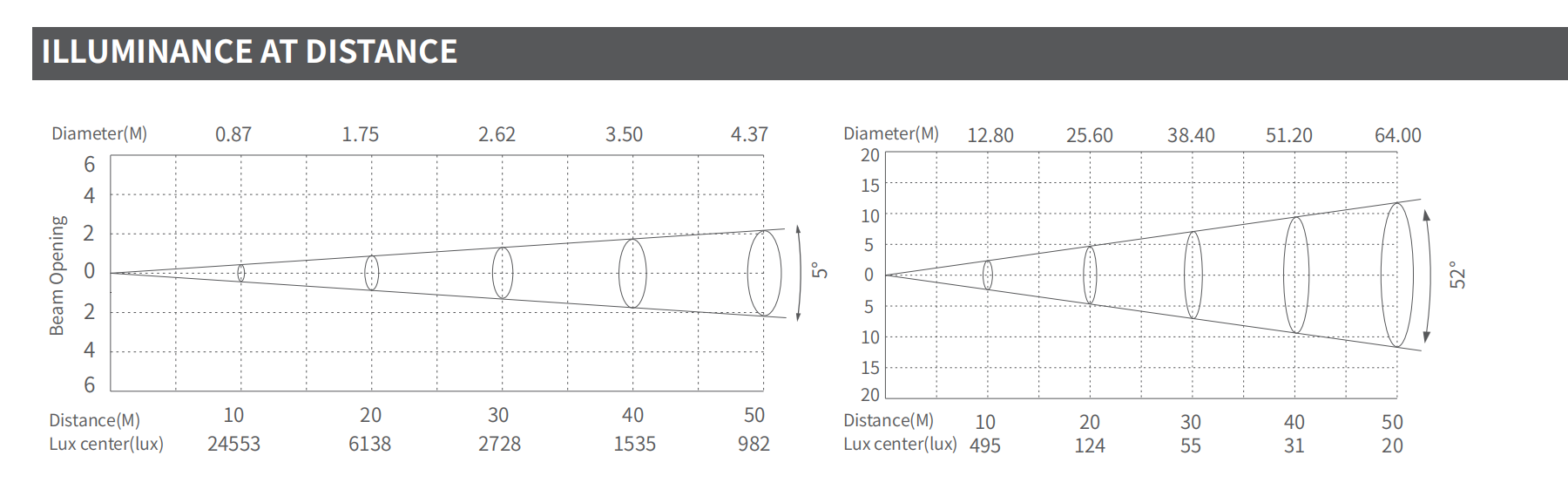

ILLUMINANCE

E8

EIDOLON 800 is a high-power outdoor LED Gobo projector with IP66 waterproof rating in the die-cast magnesium alloy. It is forced air cooling with a low noise fan. Built-in electronic zoom 5-52° and automatic focusing system, which apply to large area long-range projection; Equipped with CMY color mixing system, 6 colors, 14 rotating gobos, animation wheel, and prisms, which can achieve colorful animation effects; Equipped OLED display with touch button. Apply to theme parks, amusement places, landmark building, commercial buildings, outdoor performances, etc.
DETAILS

TECHNICAL PARAMETER

Max. Power
750W
Light source
600W(cool white LED module)
Zoom
5°-52°(motorised linear zoom)
Display
On board Control, 0-25Hz Strobe
Con personality
STANDARD(24CHS), BASIC(20CHS)
Rotating Gobos
2 rotating gobo wheels (7+open interchange glass gobos), Gobo-flow effect, Gobo shake, Bi-directional rotation
Color wheel
One color wheel (6 dichroic-filters+open, Rainbow flow effect)
CCT
Linear CTO 2700K-6500K
Prism
One 4 prism with bi-directional rotation, Speed adjustable
Color mixing
CMY, independently variable 0 - 100%
Focus
Motorized linear focus
Animation Wheel
Bi-directional rotation, Speed adjustable
Frost
1 motorized frost filter

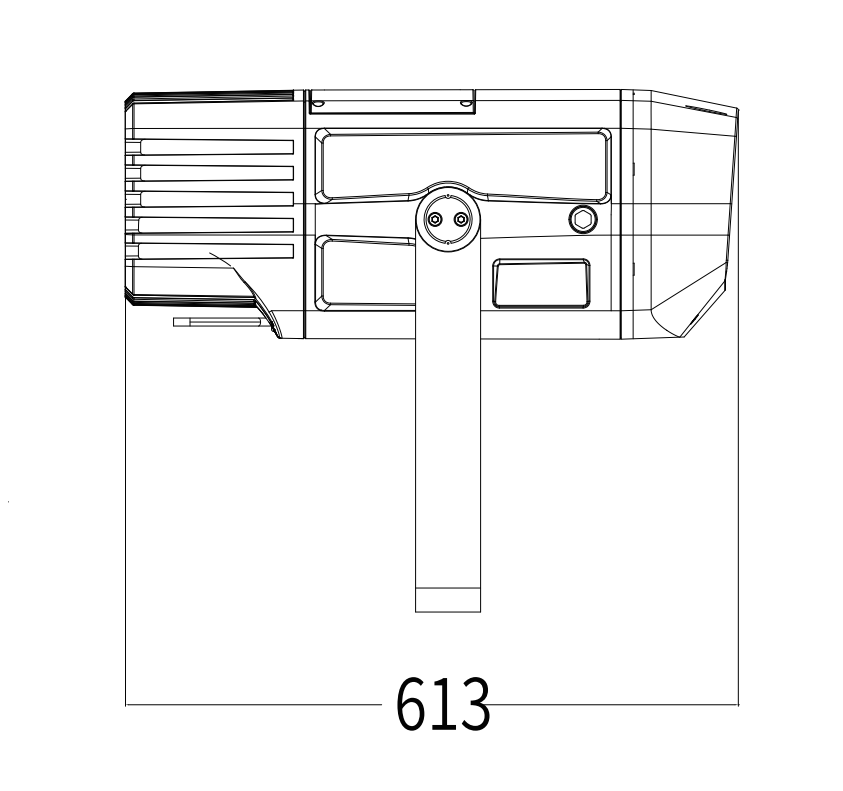

Dimensions(L*W*H)
683x343x522mm

Shutter system

AG1681SCT
No
AG1681SCT-P
4 manual shutter blades

DOWNLOAD

Leaflet

Eidolon 800 -leaflet 2024-04-22
DONWLOAD

User manual

Eidolon 800 AG1681SCT 2023-11-27
DONWLOAD

MA2

E8-AG1681SCT(MA2) 2024-10-16
DONWLOAD

AVOLITES

AG1681SCT(AVOLTES) 2023-11-27
DONWLOAD

D2

D2 2024-08-09
DONWLOAD

More
